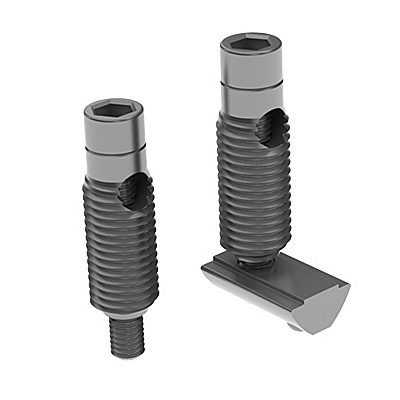

Automatic Fastening Set 40

STOCK ITEM

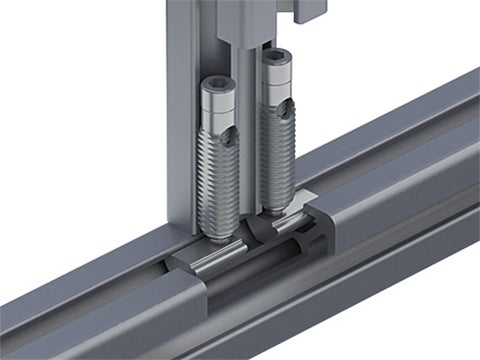

The automatic fastening set is quick and easy to use without modifying the profiles. We recommend installing them in pairs - this is also what the stress data refers to.

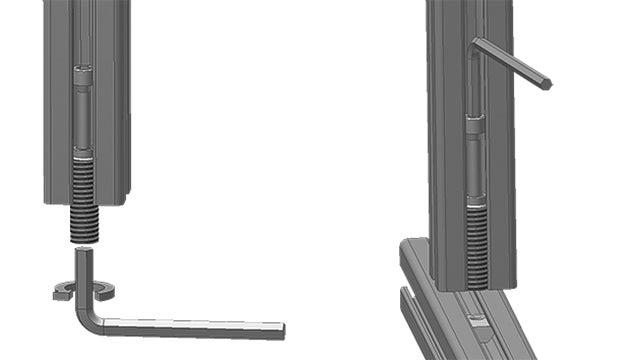

Assembly:
Insert the cylinder head screw head first into the profile groove. Then the self-tapping hollow screw is screwed into the profile groove on the face side. You should use a lubricant for this. Then the slot nut is plugged into the profile to be connected and the cylinder screw tightened.
Read more

Product Information

System: 40 - Slot 8
Type: Fasteners
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD

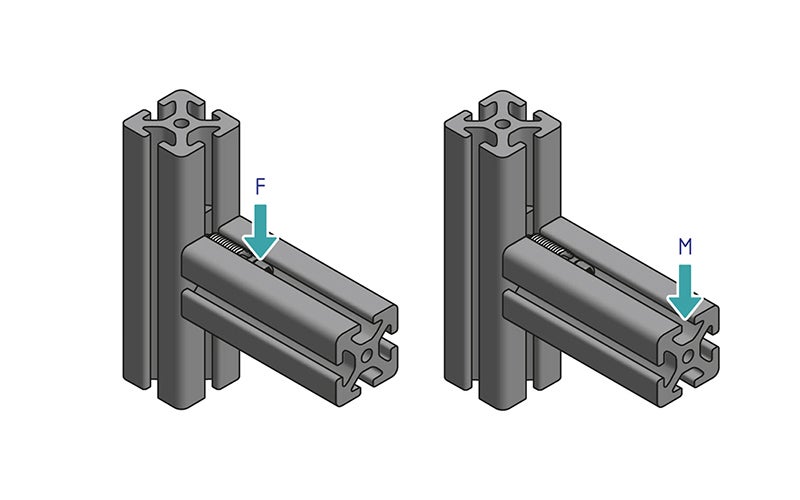

Designation Select all CAD Compare Get quote Lead Time * Description System Material Colour Slot Fmax (N) Mmax (Nm)
Get quote 1 Automatic connector including slot nut with notched guide step 40 - Slot 8 Galvanised steel - 8 1500 80

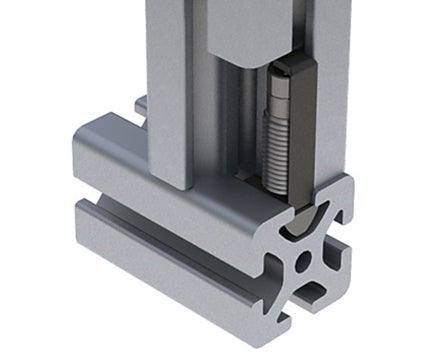

Get quote 2 Cap for slot 8 automatic connector 40 - Slot 8 Plastic (PA) Grey RAL7042 8 - -

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
