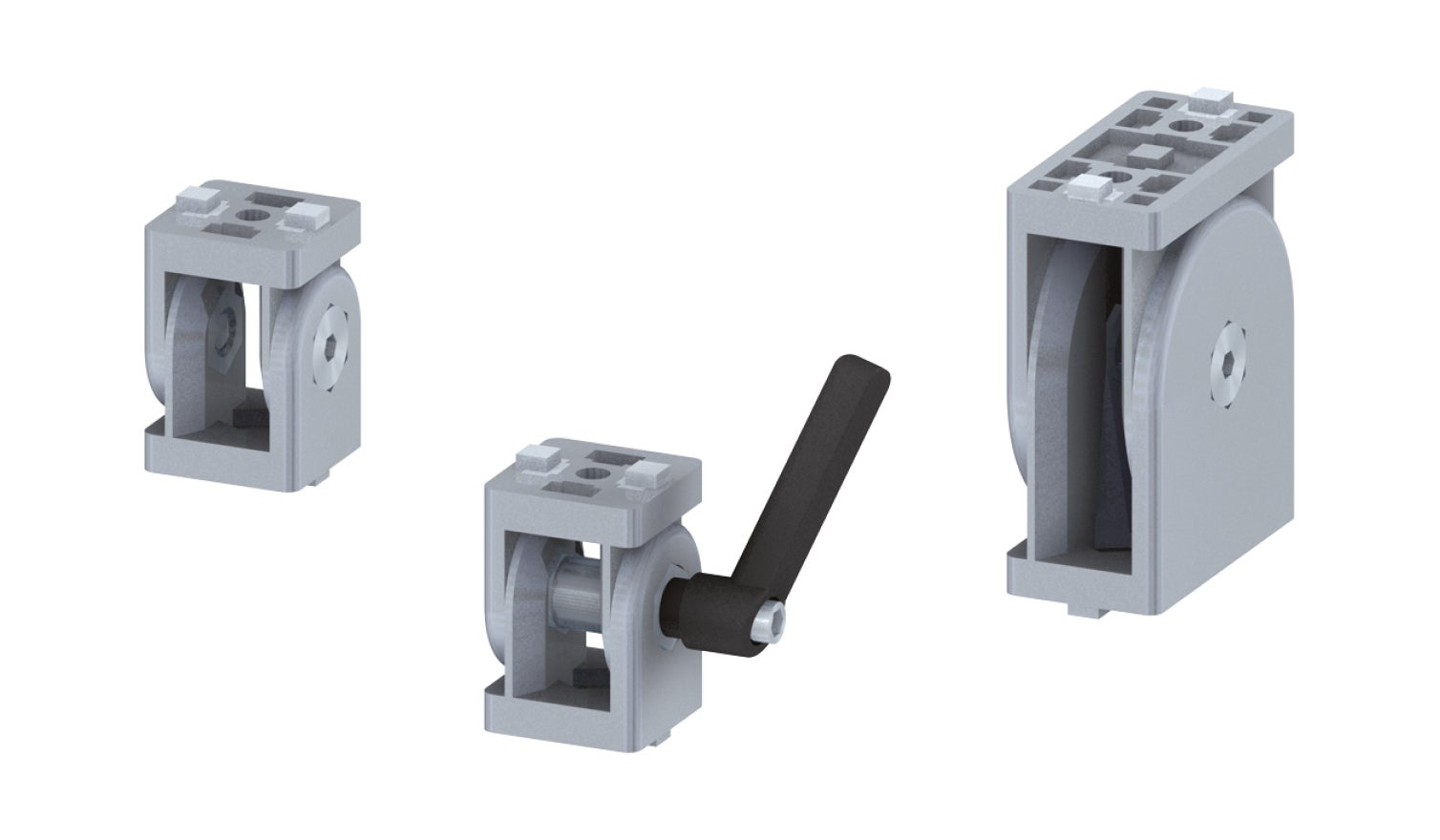

Heavy Duty Joints 40
Application:
For connecting two profiles at any angle up to 180° (± 90°). The clamp lever facilitates easy positioning. For heavy duty joints without a clamp lever, the angle can be set by tightening the hexagon nuts.
Read more
For connecting two profiles at any angle up to 180° (± 90°). The clamp lever facilitates easy positioning. For heavy duty joints without a clamp lever, the angle can be set by tightening the hexagon nuts.
Product Information
System: 40 - Slot 8
Type: Joints
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue

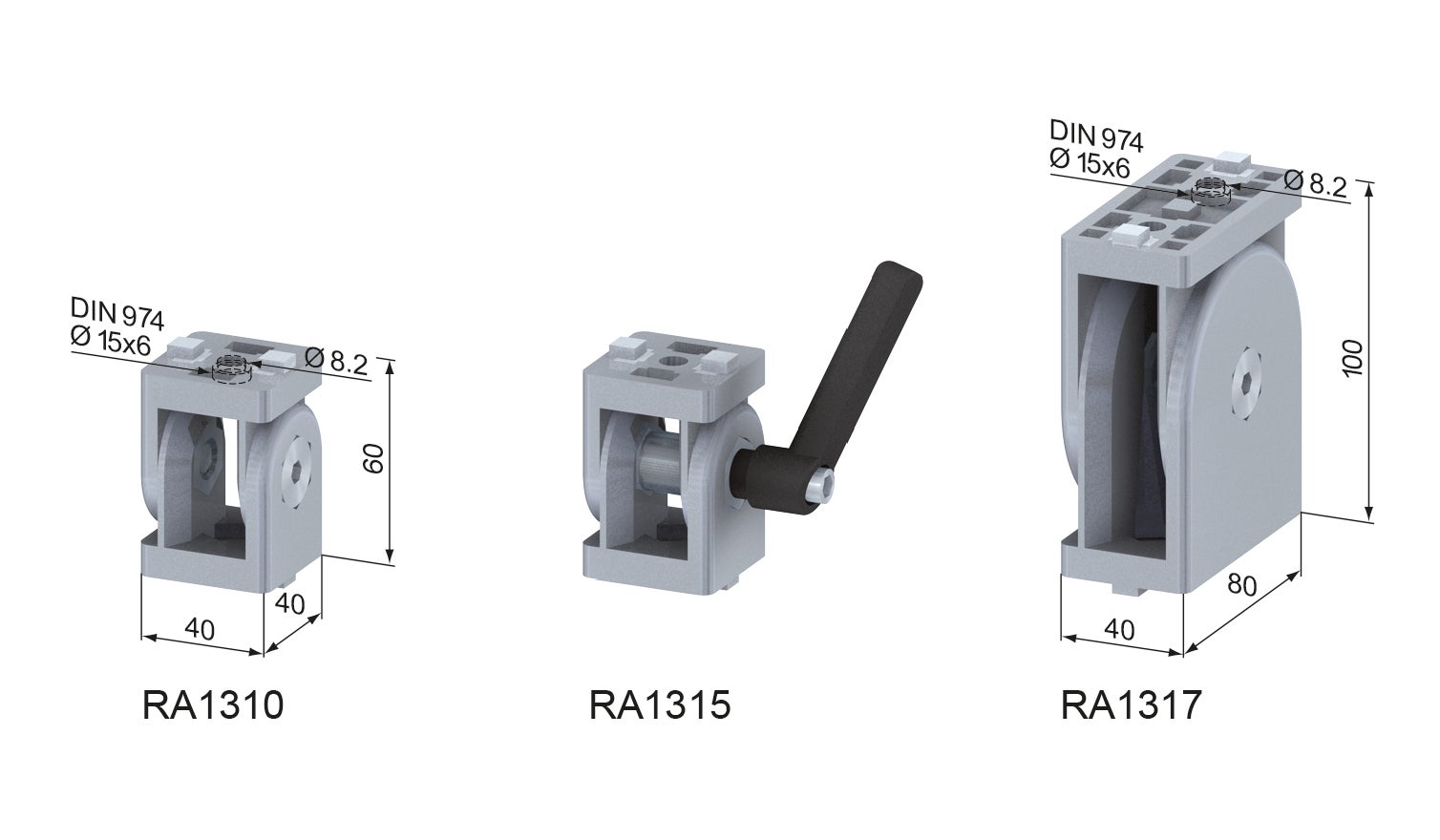

| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Material | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|

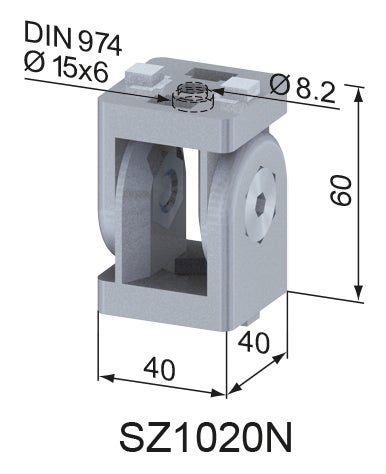

1 | Heavy Duty Joint 40 x 40, natural | 40 - Slot 8 | GDZn, natural | 293 | ||||
|
|
|

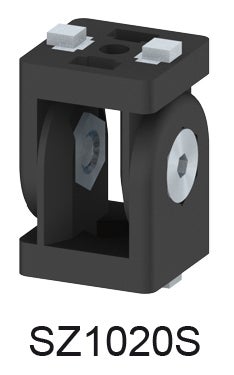

2 | Heavy Duty Joint 40 x 40, black | 40 - Slot 8 | GDZn black | 293 | ||||
|
|
|

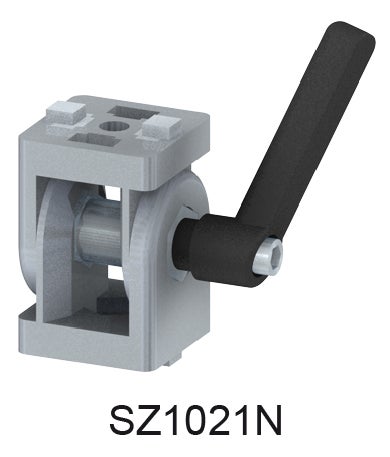

2 | Heavy Duty Joint 40 x 40, with clamp lever | 40 - Slot 8 | GDZn, natural | 335 | ||||
|
|
|
2 | Heavy Duty Joint 40 x 40, massive, natural | 40 - Slot 8 | Aluminum, natural anodized | 293 | ||||
|
|
|
1 | Heavy Duty Joint 40 x 80, natural | 40 - Slot 8 | GDZn, natural | 480 | ||||
|
|
|

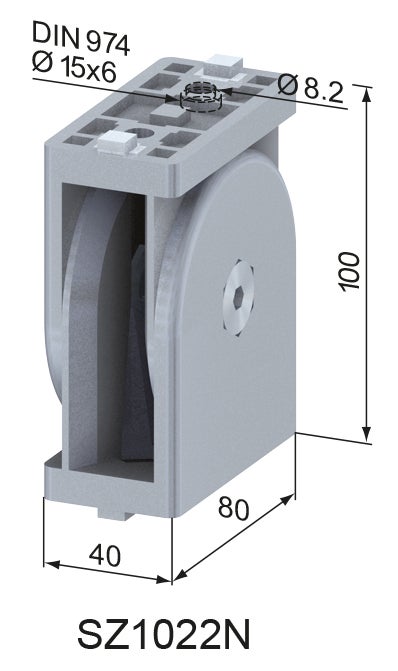

2 | Heavy Duty Joint 40 x 80, with clamp lever | 40 - Slot 8 | GDZn, natural | 690 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
