Button Head Screw (ISO 7380)
Zink plated and Stainless steel screw for C-rail
Slider Plate Version
LSWL: Stainless steel body with wipers and standard steel rollers
LXWL: Stainless steel body with wipers and stainless steel rollers (AISI-440C)
Read more
LXWL: Stainless steel body with wipers and stainless steel rollers (AISI-440C)
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight (kg) | Max. Permissible Radial Load Fmax (N) | Max. Permissible Axial Load Fmax (N) |
|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 0.05 | 300 | 170 | |||
|
|
|
1 | 0.11 | 800 | 400 | |||
|
|
|
1 | 0.40 | 1600 | 860 | |||
|
|
|
1 | 0.05 | 300 | 170 | |||
|
|
|
2 | 0.11 | 800 | 400 | |||
|
|
|
1 | 0.40 | 1600 | 860 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

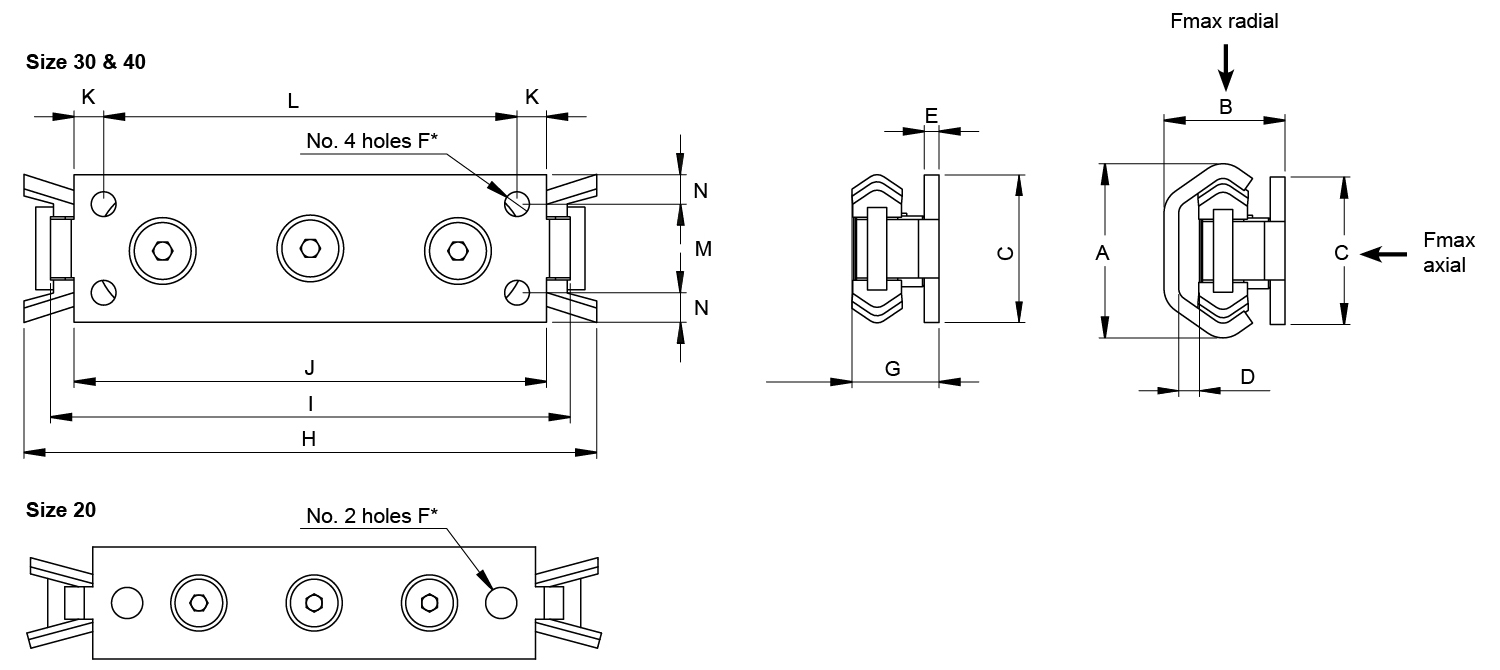

| Designation | Select all | CAD | Compare | Get quote | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
19.2 | 16 | 18 | 2.5 | 3 | M5 | 11.5 | 91 | 80 | 71 | 5.5 | 60 | - | 9 | |||
|
|
|
29.5 | 20.5 | 25 | 3.5 | 2.5 | M5 | 14.5 | 97 | 88 | 80 | 5.0 | 70 | 15 | 5 | |||
|
|
|
45.7 | 31.0 | 40 | 5.0 | 4.0 | M6 | 22 | 160 | 150 | 135 | 7.5 | 120 | 23 | 8.5 | |||
|
|
|
19.2 | 16.0 | 18 | 2.5 | 3.0 | M5 | 11.5 | 91 | 80 | 71 | 5.5 | 60 | - | 9 | |||
|
|
|
29.5 | 20.5 | 25 | 4.0 | 2.5 | M5 | 14.5 | 97 | 88 | 80 | 5.0 | 70 | 15 | 5 | |||
|
|
|
45.7 | 31.0 | 40 | 5.0 | 4.0 | M6 | 22 | 160 | 150 | 135 | 7.5 | 120 | 23 | 8.5 |
-
Rail
Standard zinc plated steel or Stainless Steel C-rail -
Rollers for Plate Version
Concentric and Eccentric rollers for plate version slider
-
Slider Solid Version
Standard zinc plated steel or stainless steel slider for C-rail, solid version
