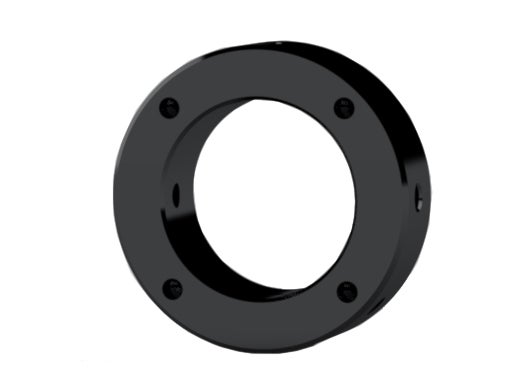

RN/RN..W

STOCK ITEM
Spanner tools for radial holes "R" available from Rollco.

All dimensions in mm.

* The Maximal tightening torque of the nut should not be exceeded. It is not required, neither recommended to tighten the nut to its limits. What is mandatory is to always tighten the set screws to prescribed values, after the nut have been tighten to a distinct stop.
Read more
Designation Select all CAD Compare Get quote Lead Time * Max. Tightening Torque Nut (Nm)* Tightening Torque Set Screws (Nm)
Get quote 2 2 0.6
Get quote 2 3 0.6
Get quote 1 3 0.6
Get quote 1 7 1.5
Get quote 2 8 1.5
Get quote 1 10 1.5
Get quote 1 17 1.5
Get quote 1 21 5.0
Get quote 1 32 5.0
Get quote 1 72 5.0
Get quote 2 87 5.0
Get quote 2 105 5.0
Get quote 2 160 5.0

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B E M R T Y d7 X
Get quote 13.5 5 2.7 M3 - 12 - M6x0.75 -
Get quote 16.4 6.5 4 M3 - 14 - M8x1 -
Get quote 19 8 5.5 M3 - 16 - M10x1 -
Get quote 22.8 8 5.5 M4 - 19 - M12x1 -
Get quote 25.8 8 4.75 M4 - 22 - M15x1 -
Get quote 29 13 9 M4 - 24 - M17x1 -
Get quote 35 11 7 M4 - 30 - M20x1 -
Get quote 43 15 10 M6 - 35 - M25x1.5 -
Get quote 48 20 14 M6 - 40 - M30x1.5 -
Get quote 62 25 18 M6 - 50 - M40x1.5 -
Get quote 45 20 11 M6 5 - 4.3 M25x1.5 35
Get quote 50 20 11 M6 5 - 4.3 M30x1.5 40
Get quote 60 22 12 M6 5 - 4.3 M40x1.5 50
