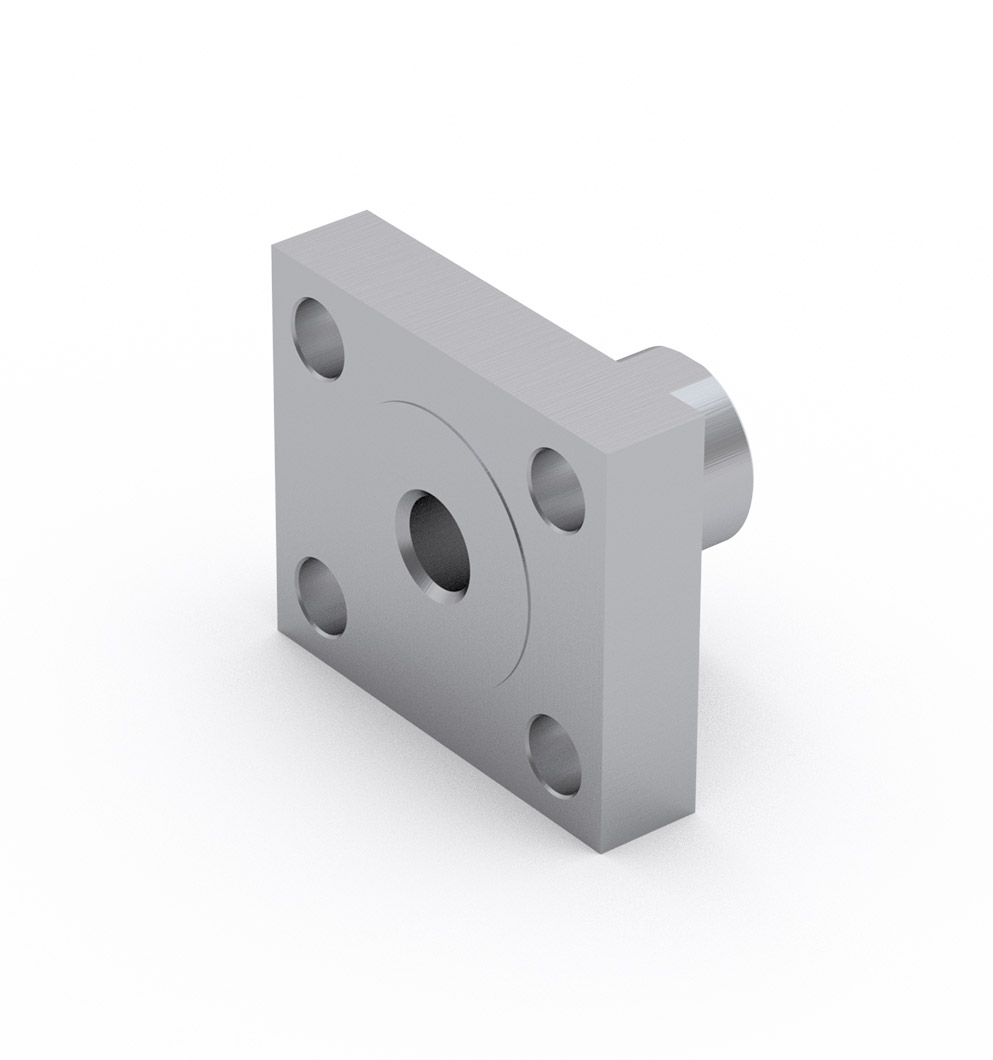

Coupling piece KSZ

Dimensions in mm.
Read more

Product Information

Material: Galvanized steel
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Material Fmax (N) Mass (kg)
Get quote 2 KSZ 25 MCE 25 Galvanized steel F MCE 0.05
Get quote 2 KSZ 32 MCE 32 Galvanized steel F MCE 0.07
Get quote 2 KSZ 45 MCE 45 Galvanized steel F MCE 0.11

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote M L1 L2 L3 L4 L5 L6 L7 D1 D2 D3 CH
Get quote M6 30 25 20 15 16 8 0.1 12^-0.1 18 5.5 10
Get quote M8 35 30 25 20 22 8 0.1 14^-0.1 20 5.5 13
Get quote M10 × 1.25 40 35 30 25 20 10 0.1 17^-0.2 26 5.5 15
