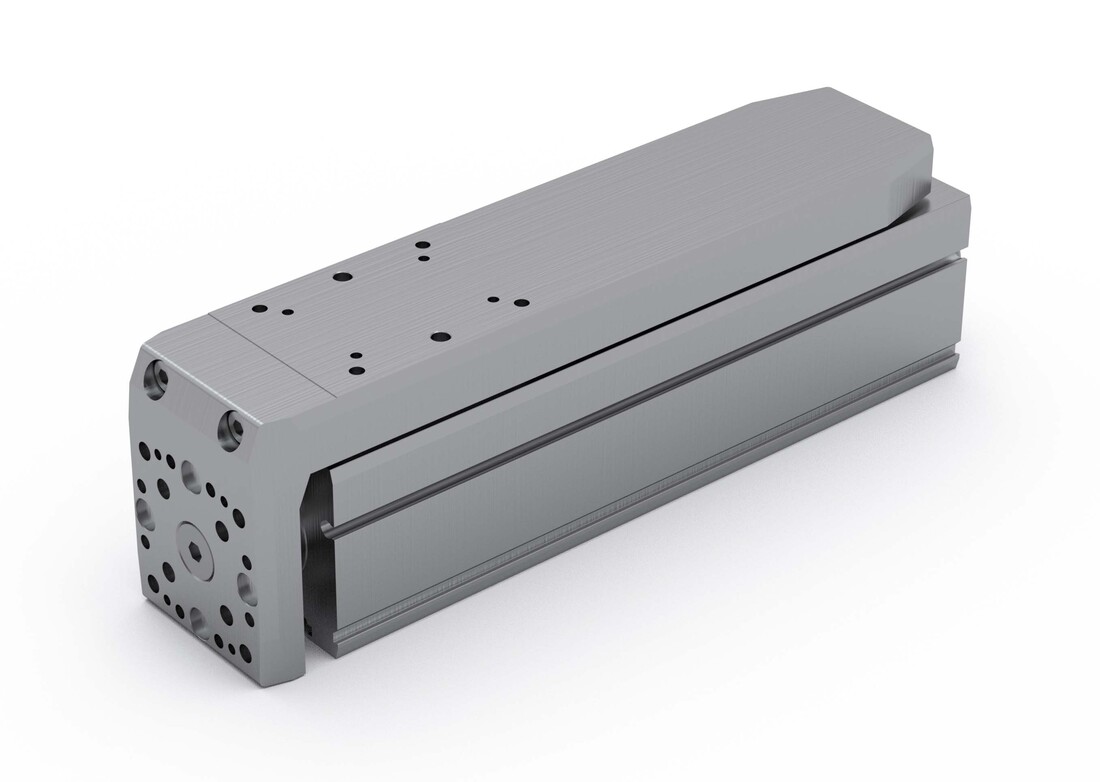

Mini electric slider MSCE is a mini linear drive with an integrated linear guiding system and slide. By using an integrated precision ball screw drive, the rotary motion (rotation) of the drive shaft is converted to the linear motion (translation) of the slide with high mechanical efficiency and low internal friction.

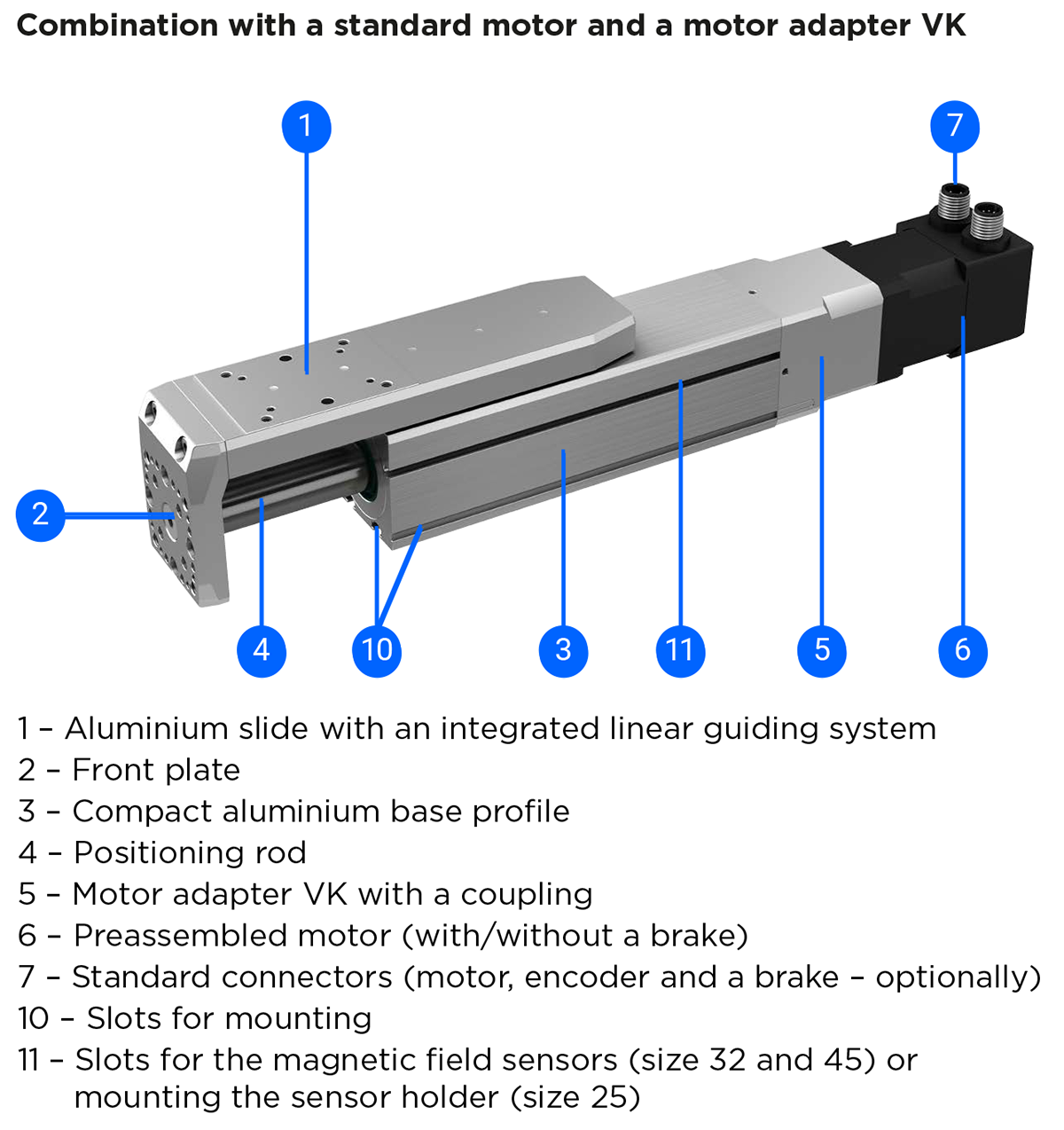

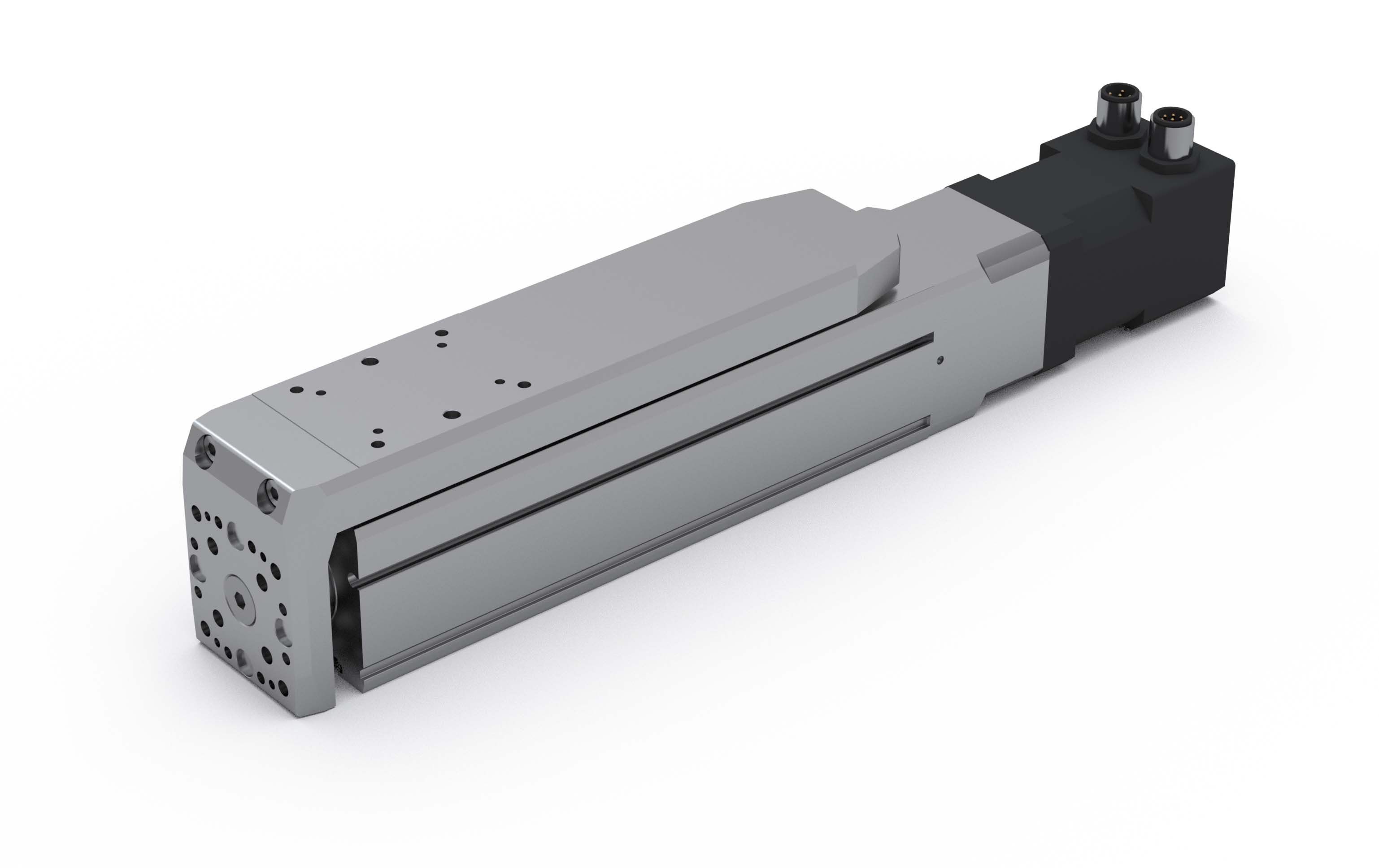

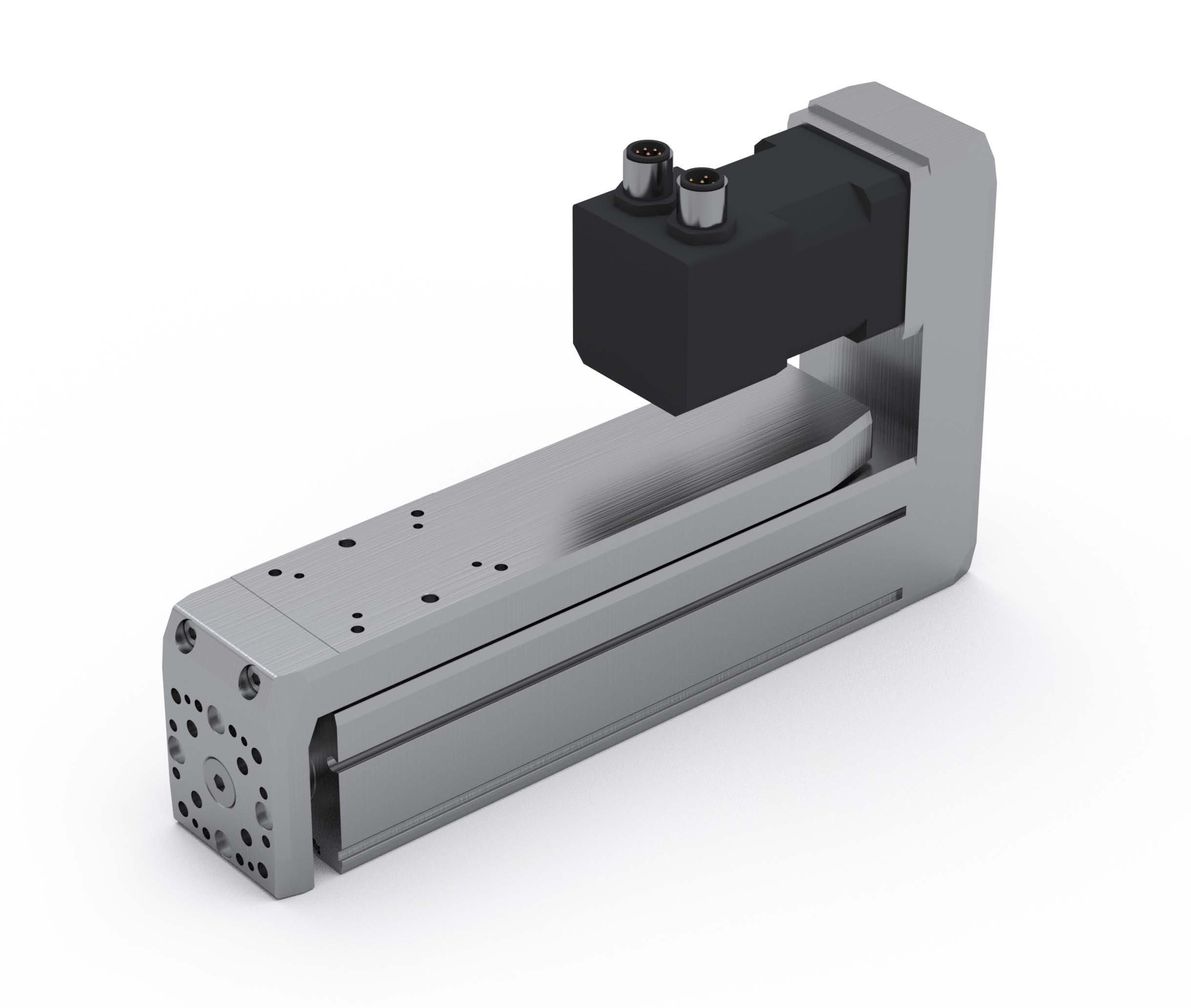

A preassembled standard motor (in-line with a motor adapter and a coupling or in-parallel with a motor side drive and a timing belt) together with the standard drive, makes the system plug and play ready. Compact dimensions and optimally selected motor combinations cover a wide range of applications.
The aluminium base profile includes T-slots on the bottom for fixing the electric slider, as well as side slots for clamping fixtures and magnetic field sensors.

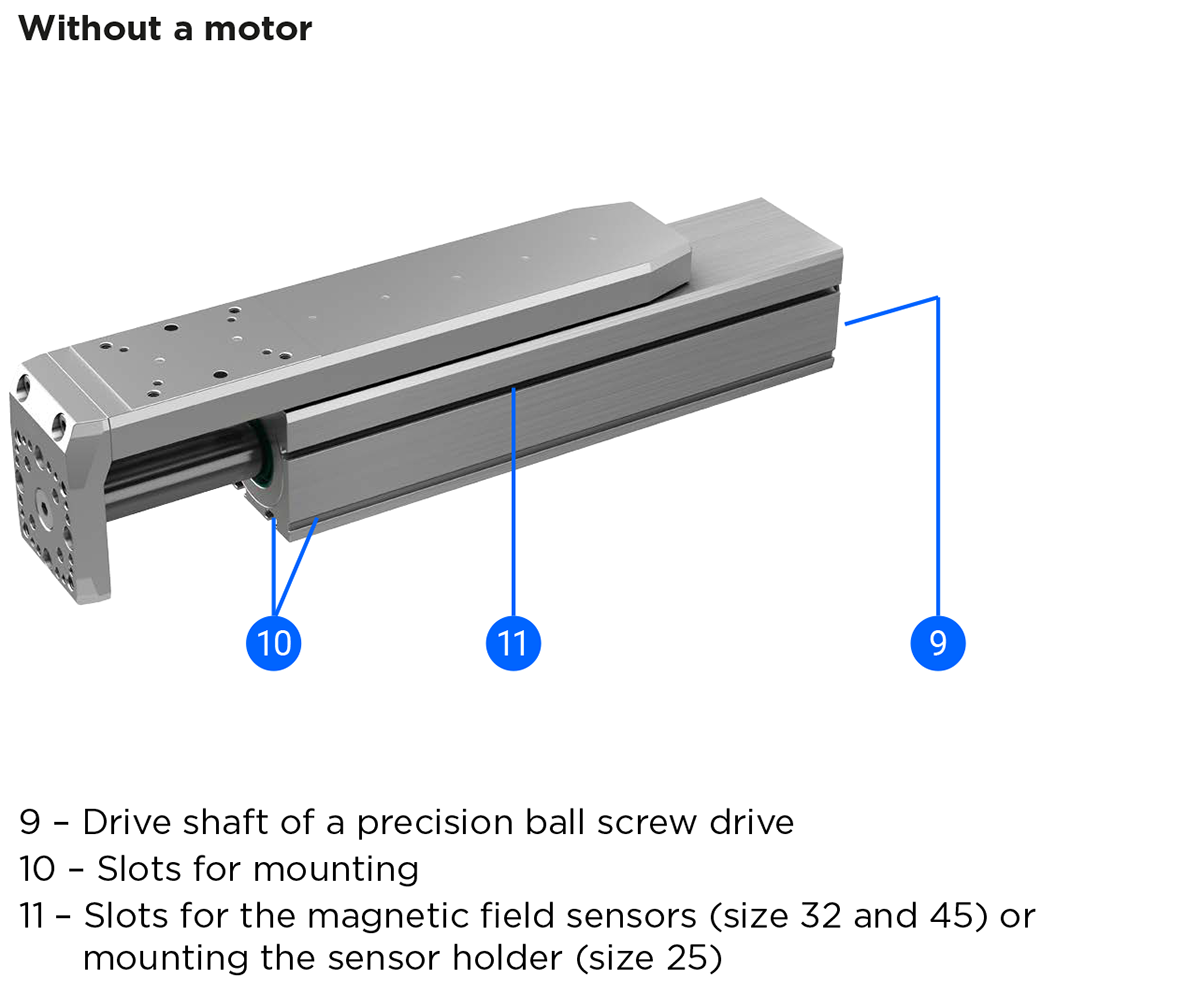

The aluminium slide and the front plate of the electric slider allow a wide range of options for mounting the working tools and attaching additional accessories. There are prepared connection holes on the slide and the front plate for an easy combination of the MSCEs to the multiaxis system, which makes this product highly flexible. There is also an option of the mini electric slider without the preassembled motor if an individual motor is required.
Positioning rod together with the rod seal ensures the protection of the ball screw drive from dust and other contamination.
Each MSCE is optimally pre-lubricated and ready for a maintenance-free operating process.
Note!
All the data of the dynamic load capacities (linear guiding system and ball screw drive) stated in the tables are theoretical without considering any safety factor. The safety factor depends on the application and its requested safety and service life.
We recommend a minimum dynamic safety factor of 5,0 or more. Please refer to the Technical Information document where the calculation of the safety factor of the ball screw drive and the linear guiding system and how the applied load affects the service life are presented.
Dimensions in mm. The scale of the drawings may not be equal.
Please see the attached Technical information document for further information and data.
Contact us if you have questions or need additional information.
Read more
A preassembled standard motor (in-line with a motor adapter and a coupling or in-parallel with a motor side drive and a timing belt) together with the standard drive, makes the system plug and play ready. Compact dimensions and optimally selected motor combinations cover a wide range of applications.
The aluminium base profile includes T-slots on the bottom for fixing the electric slider, as well as side slots for clamping fixtures and magnetic field sensors.
The aluminium slide and the front plate of the electric slider allow a wide range of options for mounting the working tools and attaching additional accessories. There are prepared connection holes on the slide and the front plate for an easy combination of the MSCEs to the multiaxis system, which makes this product highly flexible. There is also an option of the mini electric slider without the preassembled motor if an individual motor is required.
Positioning rod together with the rod seal ensures the protection of the ball screw drive from dust and other contamination.
Each MSCE is optimally pre-lubricated and ready for a maintenance-free operating process.
Note!
All the data of the dynamic load capacities (linear guiding system and ball screw drive) stated in the tables are theoretical without considering any safety factor. The safety factor depends on the application and its requested safety and service life.
We recommend a minimum dynamic safety factor of 5,0 or more. Please refer to the Technical Information document where the calculation of the safety factor of the ball screw drive and the linear guiding system and how the applied load affects the service life are presented.
Dimensions in mm. The scale of the drawings may not be equal.
Please see the attached Technical information document for further information and data.
Contact us if you have questions or need additional information.
Product Information
Absolute Stroke: 25, 50, 75, 100, 125, 150, 175, 200
Max. Stroke (mm): 200
Max. Repeatability (mm): ±0.015 (valid for one-directional axial load)
Max. Acceleration (m/s): 20
Width (mm): 25.0 / 32.0 / 45.0 (base profile)
Height (mm): 36.5 / 45.0 / 60.5 (base profile + slide)
Ambient Temperature (°C): 0 – +50 (0 – +60 without a motor)
Protection Class: IP40
Duty Cycle: 100%
Maintenance: Life-time pre-lubricated
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Ball Screw (d x l) | Dynamic Load Capacity C (N) | Max. Drive Torque Mₚ (Nm) | Max. Travel Speed Vmax (m/s) | Max. Rotational Speed nmax (min⁻¹) (rev/min) | No Load Torque M₀ (Nm) | Axial Dynamic Load Capacity Ca (N) | Max. Permissible Axial Load Fpa (N) | Max. Permissible Payload Horizontal mph (kg) | Max. Permissible Payload Vertical mpv (kg) | Max. Permissible Radial Load on Shaft Fpr (N) | Dynamic Moment Mx (Nm) | Dynamic Moment My (Nm) | Dynamic Moment Mz (Nm) | Max. Permissible Loads Forces Fpy (N) | Max. Permissible Loads Forces Fpz (N) | Max. Permissible Loads Moments Mpx (Nm) | Max. Permissible Loads Moments Mpy (Nm) | Max. Permissible Loads Moments Mpz (Nm) | Moved Mass (kg) | Mass of the Mini Electric Slider mMSCE (kg) | Mass Moment of Inertia JMSCE (10⁻² kg cm²) | Planar Moment of Inertia ly (cm⁴) | Planar Moment of Inertia lz (cm⁴) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Without motor | 6 × 2 mm | 1310 | 0.06 | 0.150 | 4500 | 0.03 | 1900 | 170 | 57 | 14 | 25 | 4.8 | 4.1 | 4.1 | 280 | 580 | 4.8 | 4.1 | 4.1 | 0.10 + 0.0010 × Abs. stroke | 0.20 + 0.0019 × Abs. stroke | 0.29 + 0.0007 × Abs. stroke + 0.1013 × mload | 0.08 (slide) / 2.10 (base profile) | 0.88 (slide) / 1.98 (base profile) | ||||
|
|
|
2 | Without motor | 6 × 6 mm | 1310 | 0.1 | 0.450 | 4500 | 0.03 | 1700 | 90 | 30 | 7 | 25 | 4.8 | 4.1 | 4.1 | 280 | 580 | 4.8 | 4.1 | 4.1 | 0.10 + 0.0010 × Abs. stroke | 0.20 + 0.0019 × Abs. stroke | 0.36 + 0.0016 × Abs. stroke + 0.9119 × mload | 0.08 (slide) / 2.10 (base profile) | 0.88 (slide) / 1.98 (base profile) | ||||
|
|
|
2 | Without motor | 8 × 2 mm | 2135 | 0.13 | 0.150 | 4500 | 0.05 | 2000 | 375 | 125 | 31 | 50 | 10 | 6.8 | 6.8 | 860 | 860 | 10 | 6.8 | 6.8 | 0.18 + 0.0013 × Abs. stroke | 0.40 + 0.0032 × Abs. stroke | 0.71 + 0.0026 × Abs. stroke + 0.1013 × mload | 0.18 (slide) / 6.42 (base profile) | 2.16 (slide) / 6.58 (base profile) | ||||
|
|
|
2 | Without motor | 8 × 8 mm | 2135 | 0.53 | 0.600 | 4500 | 0.06 | 1500 | 375 | 125 | 31 | 50 | 10 | 6.8 | 6.8 | 860 | 860 | 10 | 6.8 | 6.8 | 0.18 + 0.0013 × Abs. stroke | 0.40 + 0.0032 × Abs. stroke | 0.99 + 0.0047 × Abs. stroke + 1.6211 × mload | 0.18 (slide) / 6.42 (base profile) | 2.16 (slide) / 6.58 (base profile) | ||||
|
|
|
2 | Without motor | 10 × 3 mm | 3240 | 0.37 | 0.225 | 4500 | 0.08 | 3500 | 695 | 233 | 58 | 100 | 20.1 | 17.4 | 17.4 | 1000 | 1000 | 16.3 | 16.3 | 16.3 | 0.36 + 0.0025 × Abs. stroke | 0.88 + 0.0059 × Abs. stroke | 2.81 + 0.0061 × Abs. stroke + 0.2280 × mload | 0.40 (slide) / 25.37 (base profile) | 7.34 (slide) / 25.16 (base profile) | ||||
|
|
|
2 | Without motor | 10 × 10 mm | 3240 | 1.23 | 0.750 | 4500 | 0.10 | 3200 | 695 | 233 | 58 | 100 | 20.1 | 17.4 | 17.4 | 1000 | 1000 | 16.3 | 16.3 | 16.3 | 0.36 + 0.0025 × Abs. stroke | 0.88 + 0.0059 × Abs. stroke | 3.63 + 0.0121 × Abs. stroke + 2.5330 × mload | 0.40 (slide) / 25.37 (base profile) | 7.34 (slide) / 25.16 (base profile) |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | L12 | L13 | L14 | L15 | L16 | L17 | L18 | L19 | L20 | L21 | L22 | L23 | U1 | U2 | U3 | U4 | U5 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
50 | 12 | 6 | 6 | Ø 12 | 36.5 | 58 | 25 | 13.5 | 19.25 | 4.4 | 19 | 17 | 18 | Ø M2.5 | 8 | 14 | 7 | Ø 5 (h7) | Ø 17.6 | Ø 20 (h7) | 4.5 | 2.3 | 2.2 | 4.2 | 2.8 | 1.4 | 1 | ||||
|
|
|
50 | 12 | 6 | 6 | Ø 12 | 36.5 | 58 | 25 | 13.5 | 19.25 | 4.4 | 19 | 17 | 18 | Ø M2.5 | 8 | 14 | 7 | Ø 5 (h7) | Ø 17.6 | Ø 20 (h7) | 4.5 | 2.3 | 2.2 | 4.2 | 2.8 | 1.4 | 1 | ||||
|
|
|
65 | 14 | 8 | 6 | Ø 14 | 45 | 73 | 32 | 13.5 | 22.8 | 4.4 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 3.2 | 5.8 | 3.6 | 2 | 1 | ||||
|
|
|
65 | 14 | 8 | 6 | Ø 14 | 45 | 73 | 32 | 13.5 | 22.8 | 4.4 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 3.2 | 5.8 | 3.6 | 2 | 1 | ||||
|
|
|
80 | 18 | 10 | 8 | Ø 18 | 60.5 | 91 | 45 | 20 | 30.5 | 4.4 | 34 | 34 | 34 | Ø M4 | 10 | 16 | 8 | Ø 8 (h7) | Ø 31.6 | Ø 34 (h7) | 4.5 | 2.3 | 4.2 | 7.5 | 4.7 | 2.5 | 1.2 | ||||
|
|
|
80 | 18 | 10 | 8 | Ø 18 | 60.5 | 91 | 45 | 20 | 30.5 | 4.4 | 34 | 34 | 34 | Ø M4 | 10 | 16 | 8 | Ø 8 (h7) | Ø 31.6 | Ø 34 (h7) | 4.5 | 2.3 | 4.2 | 7.5 | 4.7 | 2.5 | 1.2 |
-
-
Slot nut
Galvanized steel -
Centering ring
Stainless steel
