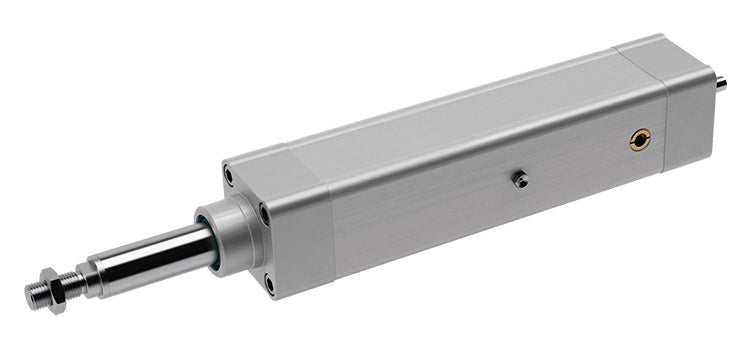

PNCE
Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
Motor Adapter
Motor adapter for PNCE Electromechanical cylinder.
Mounting screws are included!
Note: This is an dummy item. The motor flange will be designed after receipt of order and drawing of requested motor type. The geometry of motor flange can be changed in order to adapt it to a requested motor type.
Dimensions in mm.
For order information, see Order Codes.
Read more
Mounting screws are included!
Note: This is an dummy item. The motor flange will be designed after receipt of order and drawing of requested motor type. The geometry of motor flange can be changed in order to adapt it to a requested motor type.
Dimensions in mm.
For order information, see Order Codes.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Motor Type Flange | Coupling | Remark | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | - | - | - | Measurements depending on motor dimensions. Contact Rollco for further information. | ||||
|
|
|
2 | PNCE 32 | 40 x 40 | EKL10 | - | ||||
|
|
|
2 | PNCE 32 | 42 x 42 | EKL10 | - | ||||
|
|
|
2 | PNCE 32 | 55 x 55 | EKL10 | - | ||||
|
|
|
2 | PNCE 32 | 57 x 57 | EKL10 | - | ||||
|
|
|
2 | PNCE 32 | 60 x 60 | EKL10 | - | ||||
|
|
|
2 | PNCE 32 | 80 x 80 | EKL10 | - | ||||
|
|
|
2 | PNCE 32 | 40 x 40 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 32 | 42 x 42 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 32 | 55 x 55 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 32 | 57 x 57 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 32 | 60 x 60 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 32 | 80 x 80 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 40 | 40 x 40 | EKL10 | - | ||||
|
|
|
2 | PNCE 40 | 42 x 42 | EKL10 | - | ||||
|
|
|
2 | PNCE 40 | 55 x 55 | EKL10 | - | ||||
|
|
|
2 | PNCE 40 | 57 x 57 | EKL10 | - | ||||
|
|
|
2 | PNCE 40 | 60 x 60 | EKL10 | - | ||||
|
|
|
2 | PNCE 40 | 70 x 70 | EKL10 | - | ||||
|
|
|
2 | PNCE 40 | 80 x 80 | EKL10 | - | ||||
|
|
|
2 | PNCE 40 | 86 x 86 | EKL10 | - | ||||
|
|
|
2 | PNCE 40 | 40 x 40 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 40 | 42 x 42 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 40 | 55 x 55 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 40 | 57 x 57 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 40 | 60 x 60 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 40 | 70 x 70 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 40 | 80 x 80 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 40 | 86 x 86 | EKL10 | IP65CR | ||||
|
|
|
2 | PNCE 50 | 60 x 60 | EKL20 | - | ||||
|
|
|
2 | PNCE 50 | 70 x 70 | EKL20 | - | ||||
|
|
|
2 | PNCE 50 | 80 x 80 | EKL20 | - | ||||
|
|
|
2 | PNCE 50 | 86 x 86 | EKL20 | - | ||||
|
|
|
2 | PNCE 50 | 100 x 100 | EKL20 | - | ||||
|
|
|
2 | PNCE 50 | 60 x 60 | EKL20 | IP65CR | ||||
|
|
|
2 | PNCE 50 | 70 x 70 | EKL20 | IP65CR | ||||
|
|
|
2 | PNCE 50 | 80 x 80 | EKL20 | IP65CR | ||||
|
|
|
2 | PNCE 50 | 86 x 86 | EKL20 | IP65CR | ||||
|
|
|
2 | PNCE 50 | 100 x 100 | EKL20 | IP65CR | ||||
|
|
|
2 | PNCE 63 | 70 x 70 | EKL20 | - | ||||
|
|
|
2 | PNCE 63 | 80 x 80 | EKL20 | - | ||||
|
|
|
2 | PNCE 63 | 100 x 100 | EKL20 | - | ||||
|
|
|
2 | PNCE 63 | 86 x 86 | EKL20 | - | ||||
|
|
|
2 | PNCE 63 | 70 x 70 | EKL20 | IP65CR | ||||
|
|
|
2 | PNCE 63 | 80 x 80 | EKL20 | IP65CR | ||||
|
|
|
2 | PNCE 63 | 100 x 100 | EKL20 | IP65CR | ||||
|
|
|
2 | PNCE 63 | 86 x 86 | EKL20 | IP65CR | ||||
|
|
|
2 | PNCE 80 | 80 x 80 | EKL60 | - | ||||
|
|
|
2 | PNCE 80 | 86 x 86 | EKL60 | - | ||||
|
|
|
2 | PNCE 80 | 100 x 100 | EKL60 | - | ||||
|
|
|
2 | PNCE 80 | 138 x 138 | EKL60 | - | ||||
|
|
|
2 | PNCE 80 | 80 x 80 | EKL60 | IP65CR | ||||
|
|
|
2 | PNCE 80 | 86 x 86 | EKL60 | IP65CR | ||||
|
|
|
2 | PNCE 80 | 100 x 100 | EKL60 | IP65CR | ||||
|
|
|
2 | PNCE 80 | 138 x 138 | EKL60 | IP65CR | ||||
|
|
|
2 | PNCE 100 | 84 x 84 | EKL150 | - | ||||
|
|
|
2 | PNCE 100 | 100 x 100 | EKL150 | - | ||||
|
|
|
2 | PNCE 100 | 138 x 138 | EKL150 | - | ||||
|
|
|
2 | PNCE 100 | 180 x 180 | EKL150 | - | ||||
|
|
|
2 | PNCE 100 | 84 x 84 | EKL150 | IP65CR | ||||
|
|
|
2 | PNCE 100 | 100 x 100 | EKL150 | IP65CR | ||||
|
|
|
2 | PNCE 100 | 138 x 138 | EKL150 | IP65CR | ||||
|
|
|
2 | PNCE 100 | 180 x 180 | EKL150 | IP65CR |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
Motor Side Drive with a Timing Belt
Motor flange to be designed after receipt of order and drawing of requested motor type
