SN 63

LOCALLY MANUFACTURED
Variants below are standard configurations. Other configurations and customer-specific adaptations are available upon request. Please contact us for more information.

Fixing holes (C) for socket cap screws according to DIN 7984. Alternative fixing with Torx® screws in special design with low head (on request).

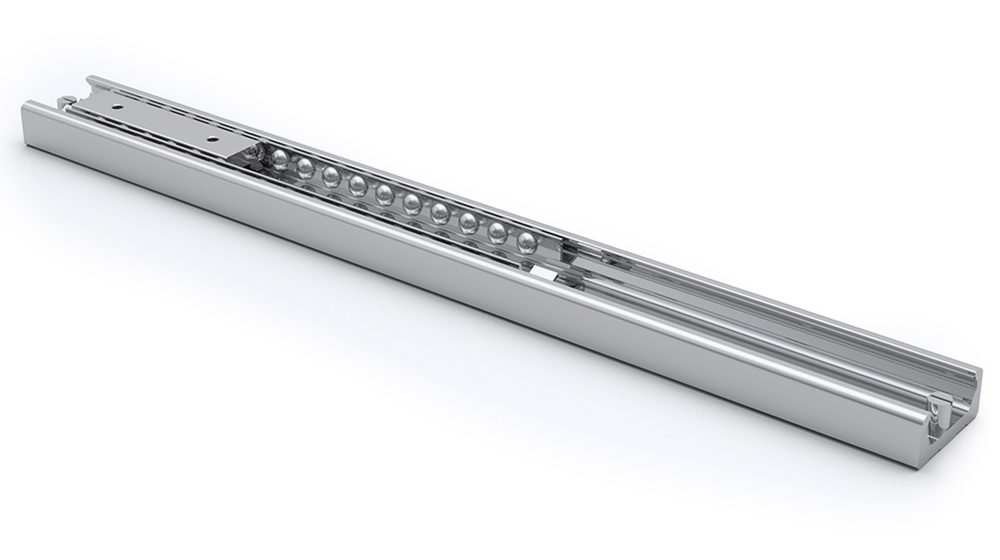

Easyslide is available in three different versions:

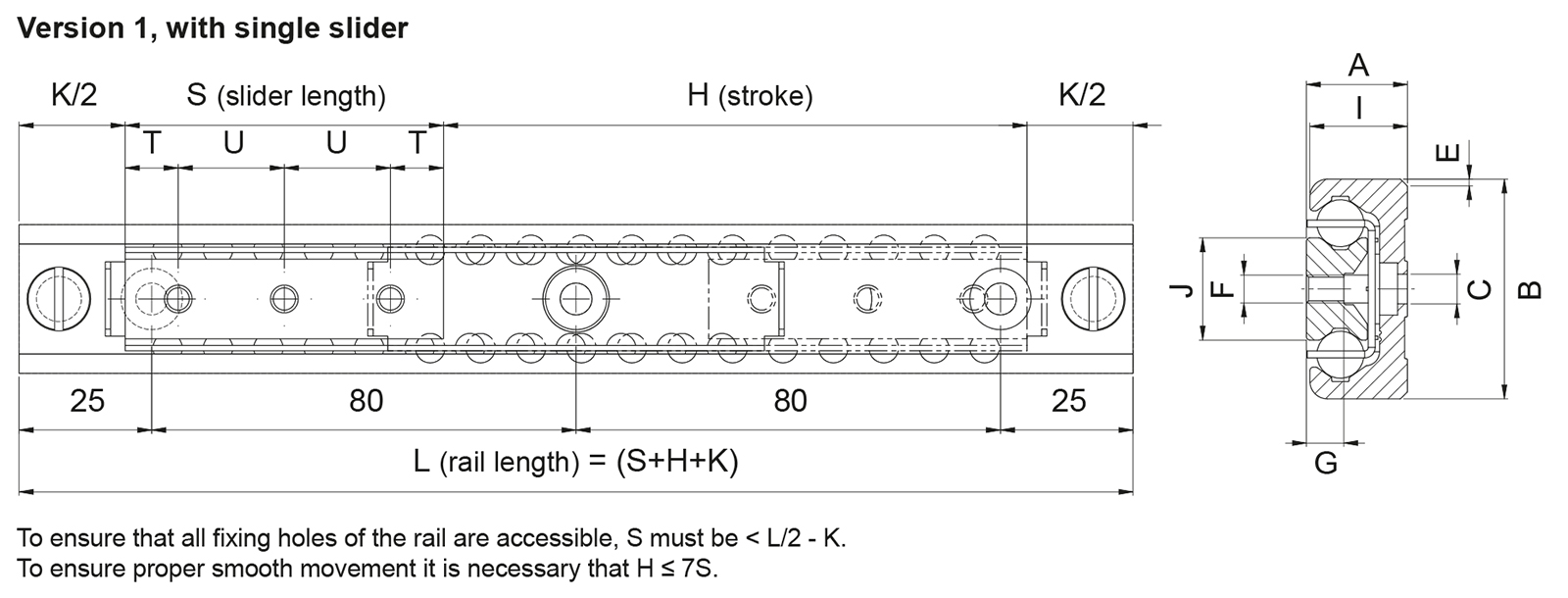

Version 1 - SINGLE SLIDER
This linear bearing consists of a guide rail and a slider that runs within the ball cage in the guide rail. High load capacities, compact cross-sections and simple and easy mounting characterize the complete series.
Below we list only the standard lengths and strokes of Version 1. Special strokes and lengths on request.

Version 2 - MULTIPLE INDEPENDENT SLIDERS
Variant with several sliders, which each runs in its own ball cage, independent of each other in the guide rail. Can be configured and used in an almost infinite variety of ways. The most common is to make a symmetrical configuration.
Contact Rollco for further advice.

Version 3 - MULTIPLE SYNCHRONIZED SLIDERS
Several sliders run in a common ball cage within the guide rails. The division of the inner slider in two parts have a positive influence on load capacity and running behavior under high Mz and My loads.
Contact Rollco for detailed advice and calculations.

Dimensions in mm.
Read more

Product Information

Weight: Rail 6.1 kg/m, slider 6,9 kg/m
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Permissible Moment Mx (Nm) Permissible Moment My (Nm) Permissible Moment Mz (Nm)
2 26000 18200 238 394 563
2 26000 18200 238 394 563
2 26000 18200 238 394 563
2 26000 18200 238 394 563
2 26000 18200 238 394 563
2 26000 18200 238 394 563
2 42000 29400 385.8 1029 1470
2 42000 29400 385.8 1029 1470
2 42000 29400 385.8 1029 1470
2 42000 29400 385.8 1029 1470
2 42000 29400 385.8 1029 1470
2 42000 29400 385.8 1029 1470
2 42000 29400 385.8 1029 1470
2 42000 29400 385.8 1029 1470
2 42000 29400 385.8 1029 1470
2 42000 29400 385.8 1029 1470
2 58000 40600 532.8 1962 2803
2 58000 40600 532.8 1962 2803
2 58000 40600 532.8 1962 2803
2 58000 40600 532.8 1962 2803
2 58000 40600 532.8 1962 2803
2 58000 40600 532.8 1962 2803
2 58000 40600 532.8 1962 2803
2 58000 40600 532.8 1962 2803
2 58000 40600 532.8 1962 2803
2 58000 40600 532.8 1962 2803
2 74000 51800 679.8 3194 4563
2 74000 51800 679.8 3194 4563
2 74000 51800 679.8 3194 4563
2 74000 51800 679.8 3194 4563
2 74000 51800 679.8 3194 4563
2 74000 51800 679.8 3194 4563
2 74000 51800 679.8 3194 4563
2 74000 51800 679.8 3194 4563
2 74000 51800 679.8 3194 4563
2 90000 63000 826.7 4725 6750
2 90000 63000 826.7 4725 6750
2 90000 63000 826.7 4725 6750
2 90000 63000 826.7 4725 6750
2 90000 63000 826.7 4725 6750
2 90000 63000 826.7 4725 6750
2 90000 63000 826.7 4725 6750
2 90000 63000 826.7 4725 6750
2 106000 74200 973.7 6554 9363
2 106000 74200 973.7 6554 9363
2 106000 74200 973.7 6554 9363
2 106000 74200 973.7 6554 9363
2 106000 74200 973.7 6554 9363
2 106000 74200 973.7 6554 9363
2 122000 85400 1120.7 8682 12403
2 122000 85400 1120.7 8682 12403
2 122000 85400 1120.7 8682 12403
2 122000 85400 1120.7 8682 12403
2 122000 85400 1120.7 8682 12403
2 Depends on config. N/A N/A N/A N/A
2 Depends on config. N/A N/A N/A N/A

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L H A B S Number of Fixing Holes C E F G I J K T U
610 400 29 63 130 2 M8 2x45 M8 10.5 28 29.3 80 25 80
690 480 29 63 130 2 M8 2x45 M8 10.5 28 29.3 80 25 80
770 560 29 63 130 2 M8 2x45 M8 10.5 28 29.3 80 25 80
850 640 29 63 130 2 M8 2x45 M8 10.5 28 29.3 80 25 80
930 720 29 63 130 2 M8 2x45 M8 10.5 28 29.3 80 25 80
1010 800 29 63 130 2 M8 2x45 M8 10.5 28 29.3 80 25 80
610 320 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
690 400 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
770 480 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
850 560 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
930 640 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
1010 720 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
1170 880 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
1330 1040 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
1490 1200 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
1650 1360 29 63 210 3 M8 2x45 M8 10.5 28 29.3 80 25 80
610 240 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
690 320 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
770 400 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
850 480 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
930 560 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
1010 640 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
1170 800 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
1330 960 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
1490 1120 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
1650 1280 29 63 290 4 M8 2x45 M8 10.5 28 29.3 80 25 80
770 320 29 63 370 5 M8 2x45 M8 10.5 28 29.3 80 25 80
850 400 29 63 370 5 M8 2x45 M8 10.5 28 29.3 80 25 80
930 480 29 63 370 5 M8 2x45 M8 10.5 28 29.3 80 25 80
1010 560 29 63 370 5 M8 2x45 M8 10.5 28 29.3 80 25 80
1170 720 29 63 370 5 M8 2x45 M8 10.5 28 29.3 80 25 80
1330 880 29 63 370 5 M8 2x45 M8 10.5 28 29.3 80 25 80
1490 1040 29 63 370 5 M8 2x45 M8 10.5 28 29.3 80 25 80
1650 1200 29 63 370 5 M8 2x45 M8 10.5 28 29.3 80 25 80
1810 1360 29 63 370 5 M8 2x45 M8 10.5 28 29.3 80 25 80
930 400 29 63 450 6 M8 2x45 M8 10.5 28 29.3 80 25 80
1010 480 29 63 450 6 M8 2x45 M8 10.5 28 29.3 80 25 80
1170 640 29 63 450 6 M8 2x45 M8 10.5 28 29.3 80 25 80
1330 800 29 63 450 6 M8 2x45 M8 10.5 28 29.3 80 25 80
1490 960 29 63 450 6 M8 2x45 M8 10.5 28 29.3 80 25 80
1650 1120 29 63 450 6 M8 2x45 M8 10.5 28 29.3 80 25 80
1810 1280 29 63 450 6 M8 2x45 M8 10.5 28 29.3 80 25 80
1170 560 29 63 450 6 M8 2x45 M8 10.5 28 29.3 80 25 80
1170 560 29 63 530 7 M8 2x45 M8 10.5 28 29.3 80 25 80
1330 720 29 63 530 7 M8 2x45 M8 10.5 28 29.3 80 25 80
1490 880 29 63 530 7 M8 2x45 M8 10.5 28 29.3 80 25 80
1650 1040 29 63 530 7 M8 2x45 M8 10.5 28 29.3 80 25 80
1810 1200 29 63 530 7 M8 2x45 M8 10.5 28 29.3 80 25 80
1970 1360 29 63 530 7 M8 2x45 M8 10.5 28 29.3 80 25 80
1330 640 29 63 610 8 M8 2x45 M8 10.5 28 29.3 80 25 80
1490 800 29 63 610 8 M8 2x45 M8 10.5 28 29.3 80 25 80
1650 960 29 63 610 8 M8 2x45 M8 10.5 28 29.3 80 25 80
1810 1120 29 63 610 8 M8 2x45 M8 10.5 28 29.3 80 25 80
1970 1280 29 63 610 8 M8 2x45 M8 10.5 28 29.3 80 25 80
Depends on config. N/A 29 63 N/A N/A M8 2x45 M8 10.5 28 29.3 80 25 80
Depends on config. N/A 29 63 N/A N/A M8 2x45 M8 10.5 28 29.3 80 25 80
