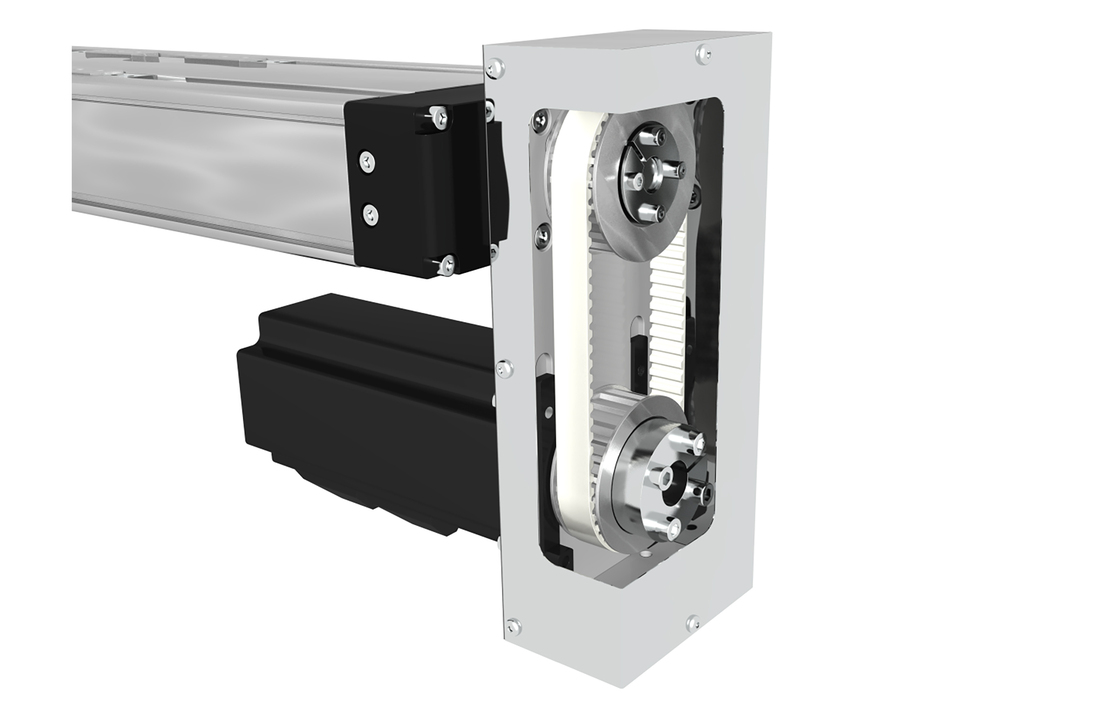

Motor Side Drive - MSD
Available for CTV 200 & MTV 110 on request.

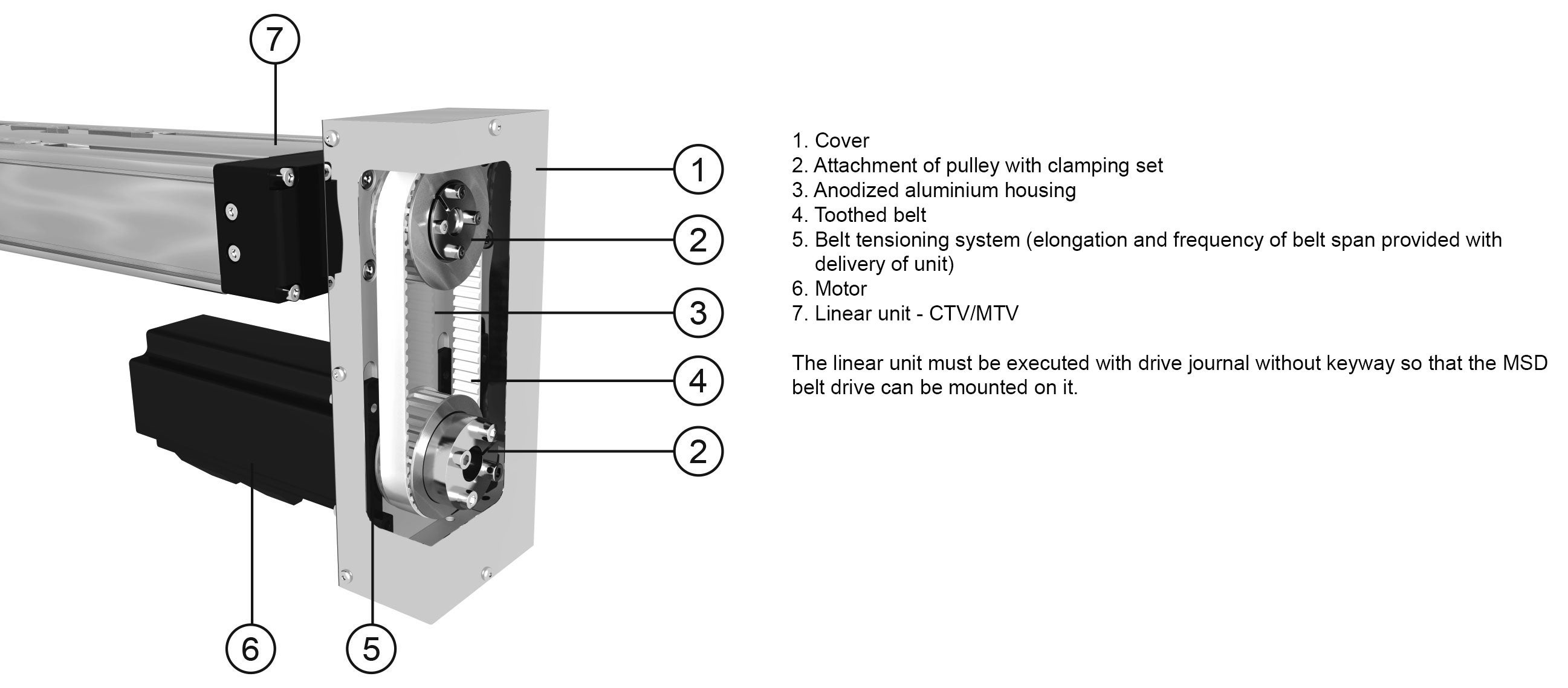

The linear unit must be executed with drive journal without keyway so that the MSD belt drive can be mounted on it.

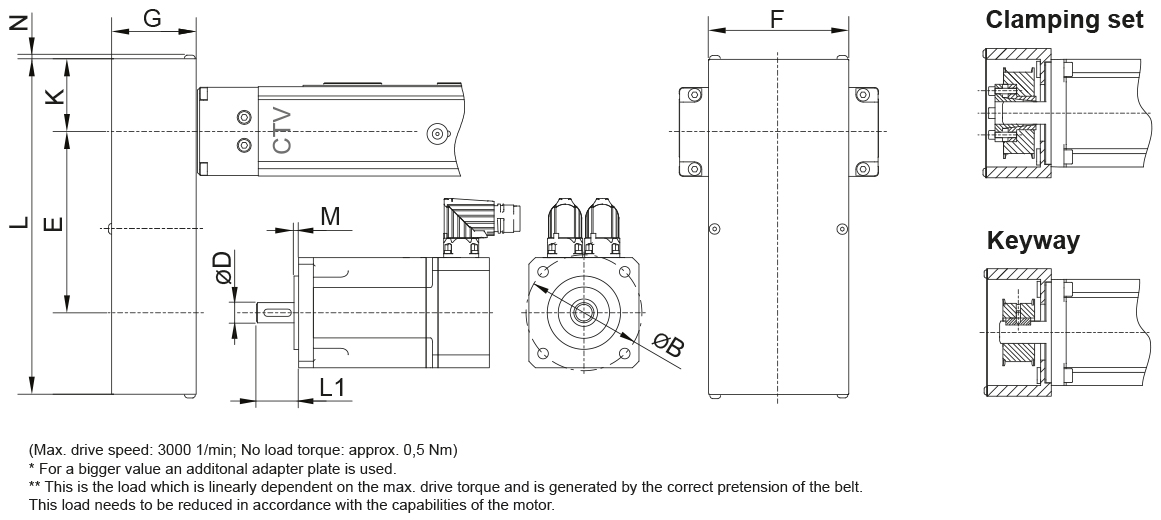

Contact Rollco for CAD-files.
Dimensions in mm.
Read more
The linear unit must be executed with drive journal without keyway so that the MSD belt drive can be mounted on it.
Contact Rollco for CAD-files.
Dimensions in mm.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Max. Drive Torque (Linear Unit) (Nm) | Max. Radial Load on Shaft (N) | Mass Moment of Inertia (10⁻⁶ kg m²) | Mass (kg) | ØB max | Mmax (Nm) | Motor size limits - L1 -min. clamping set | Motor size limits - L1 -min. keyway | Motor size limits -L1- max. | ØD Max. Clamping set | ØD Max. Keyway | E | F | G | K | L | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 2.7 | 90 | 79 m2 | 0.88 | 70 | 4 | 22 | 25 | 39 | 14 | 22 | 100 | 70 | 41 | 31 | 179 | 2 | ||
|
|
|
2 | 2.7 | 90 | 48 m2 | 0.74 | 70 | 4 | / | 25 | 39 | / | 14 | 102 | 70 | 41 | 31 | 179 | 2 | ||
|
|
|
2 | 5 | 175 | 72 m2 | 0.9 | 70 | 4 | 22 | 25 | 39 | 14 | 22 | 100 | 70 | 41 | 31 | 179 | 2 | ||
|
|
|
2 | 5 | 175 | 72 m2 | 0.9 | 70 | 4 | 22 | 25 | 39 | 14 | 22 | 100 | 70 | 41 | 31 | 179 | 2 | ||
|
|
|
2 | 5 | 175 | 41 m2 | 0.8 | 70 | 4 | / | 25 | 39 | / | 14 | 112 | 70 | 41 | 31 | 190 | 2 | ||
|
|
|
2 | 5 | 175 | 41 m2 | 0.8 | 70 | 4 | / | 25 | 39 | / | 14 | 112 | 70 | 41 | 31 | 190 | 2 | ||
|
|
|
2 | 9 | 245 | 206 m2 | 1.51 | 100 | 4 | 24 | 30 | 49 | 18 | 30 | 145 | 90 | 51 | 43 | 250 | 2 | ||
|
|
|
2 | 9 | 245 | 206 m2 | 1.51 | 100 | 4 | 24 | 30 | 49 | 18 | 30 | 145 | 90 | 51 | 43 | 250 | 2 | ||
|
|
|
2 | 11 | 235 | 335 m2 | 1.53 | 100 | 4 | 25 | 30 | 49 | 14 | 30 | 139 | 90 | 51 | 43 | 250 | 2 | ||
|
|
|
2 | 11 | 235 | 335 m2 | 1.53 | 100 | 4 | 25 | 30 | 49 | 14 | 30 | 139 | 90 | 51 | 43 | 250 | 2 | ||
|
|
|
2 | 13 | 350 | 207 m2 | 1.52 | 100 | 4 | 24 | 30 | 49 | 18 | 30 | 145 | 90 | 51 | 43 | 250 | 2 | ||
|
|
|
2 | 13 | 350 | 207 m2 | 1.52 | 100 | 4 | 24 | 30 | 49 | 18 | 30 | 145 | 90 | 51 | 43 | 250 | 2 | ||
|
|
|
2 | 19 | 410 | 335 m2 | 1.64 | 100 | 4 | 25 | 30 | 49 | 14 | 30 | 180 | 90 | 51 | 43 | 282 | 2 | ||
|
|
|
2 | 19 | 410 | 335 m2 | 1.64 | 100 | 4 | 25 | 30 | 49 | 14 | 30 | 180 | 90 | 51 | 43 | 282 | 2 | ||
|
|
|
2 | 19 | 410 | 551 m2 | 3.3 | 120 | 4 | 30 | 35 | 59 | 22 | 40 | 160 | 120 | 61 | 56 | 297 | 2.5 | ||
|
|
|
2 | 19 | 410 | 551 m2 | 3.3 | 120 | 4 | 30 | 35 | 59 | 22 | 40 | 160 | 120 | 61 | 56 | 297 | 2.5 | ||
|
|
|
2 | 24 | 375 | 860 m2 | 2.93 | 120 | 4 | 30 | 35 | 59 | 14 | 32 | 158 | 120 | 61 | 56 | 297 | 2.5 | ||
|
|
|
2 | 24 | 375 | 860 m2 | 2.93 | 120 | 4 | 30 | 35 | 59 | 14 | 32 | 158 | 120 | 61 | 56 | 297 | 2.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
