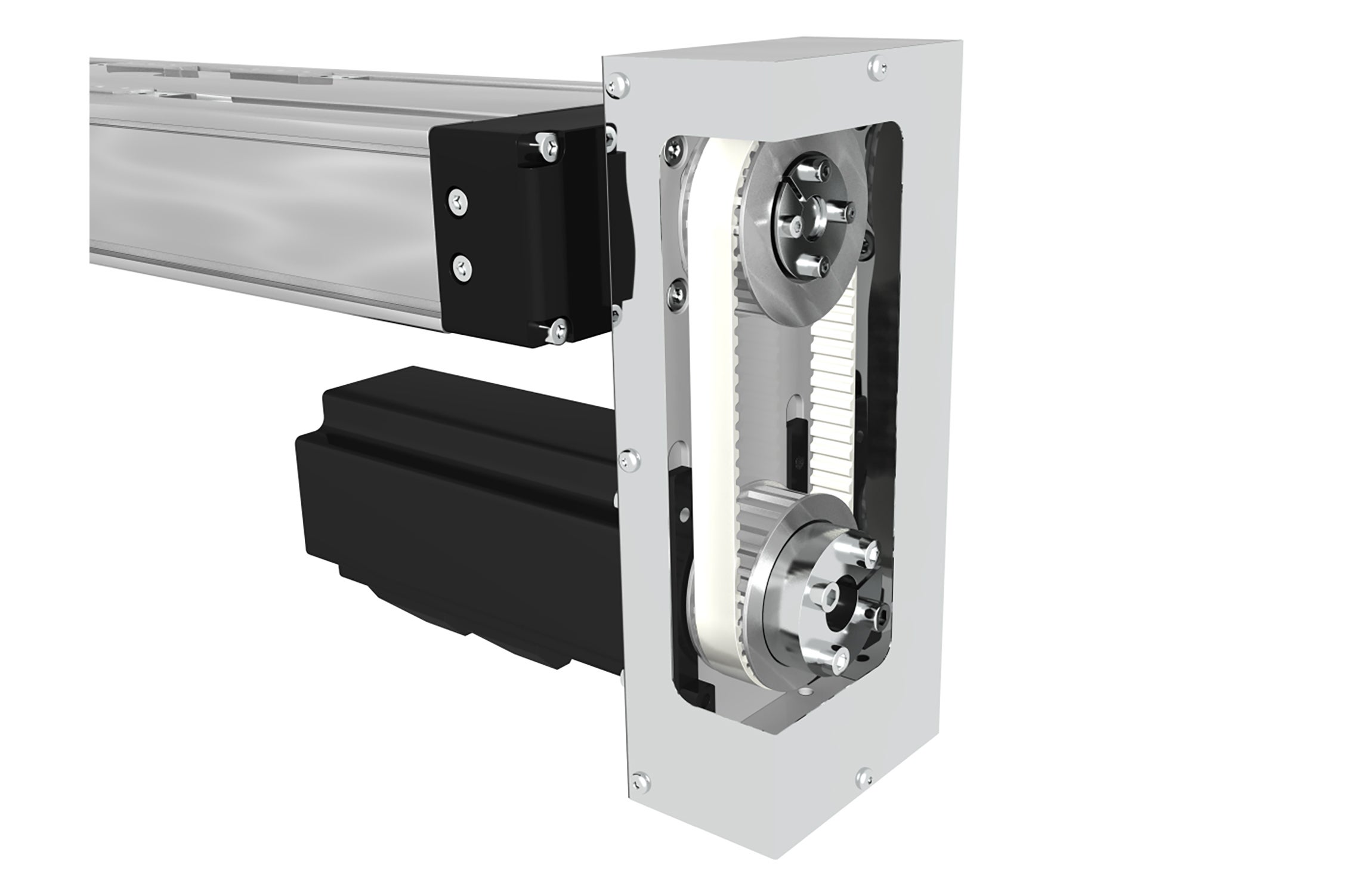

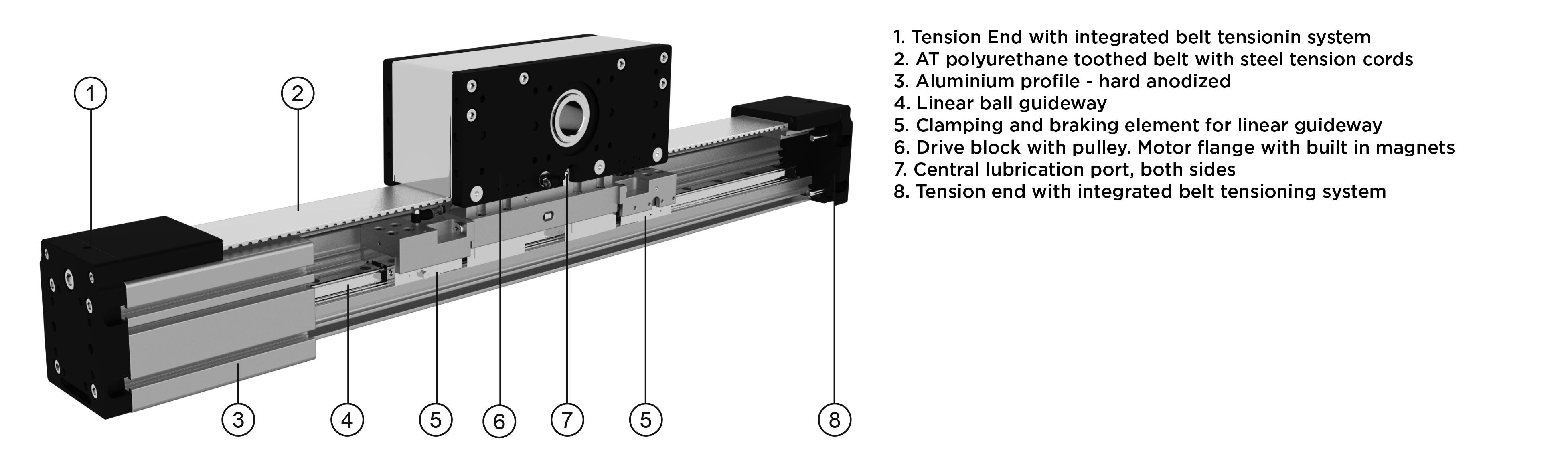

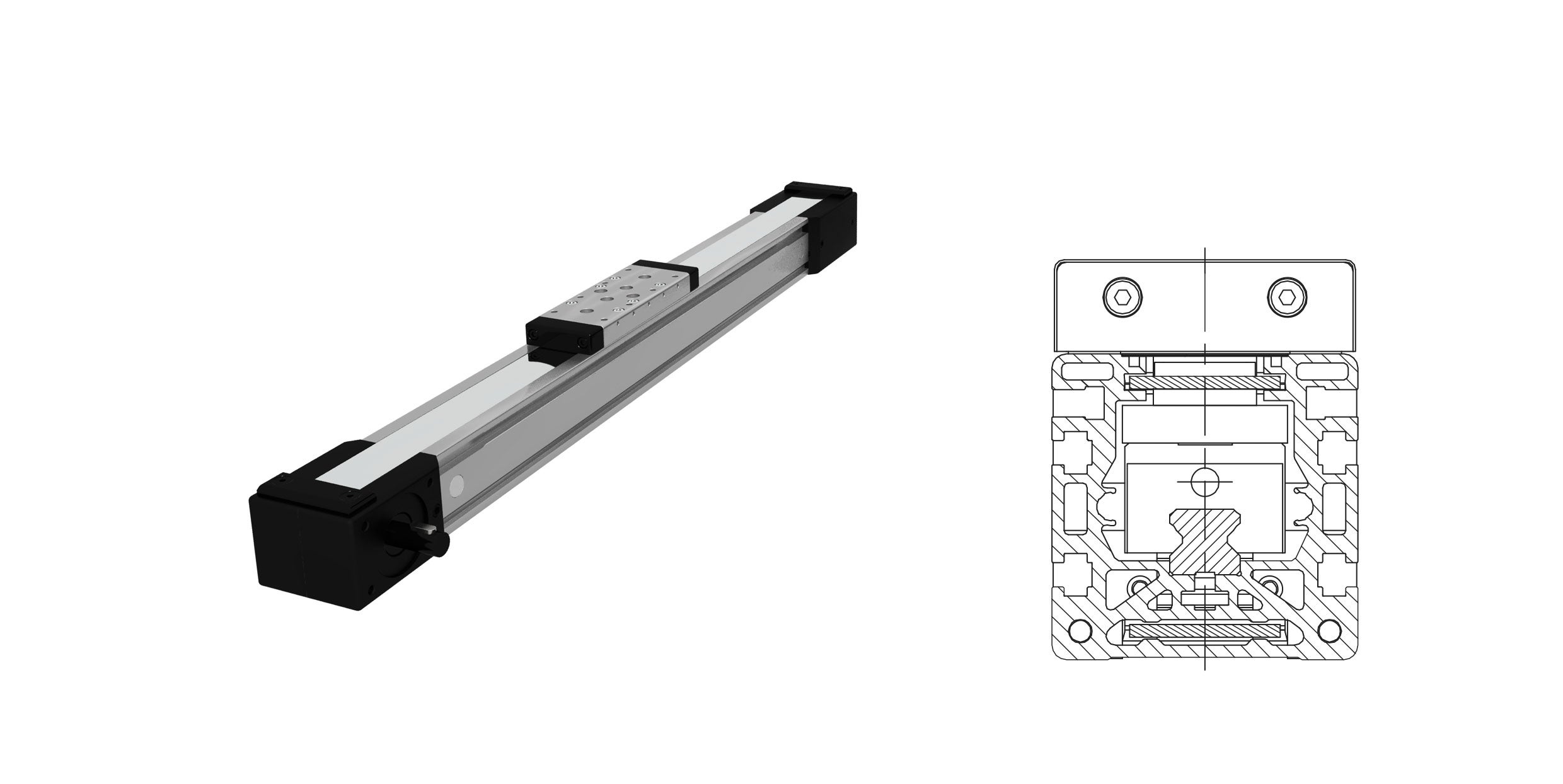

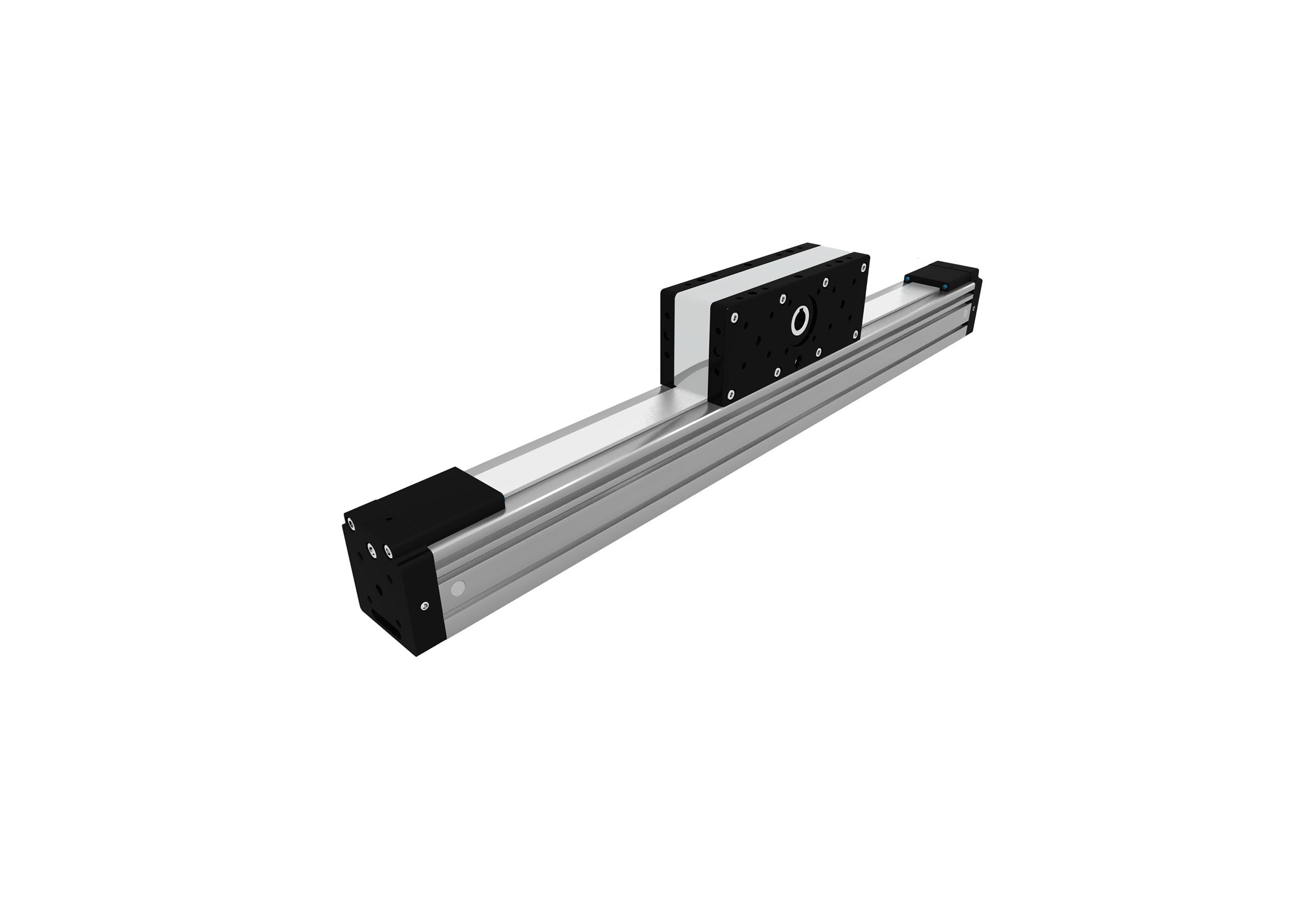

Motor Side Drive - MSD

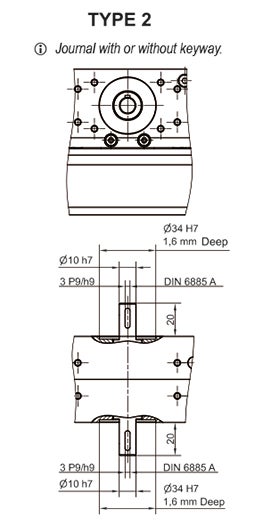

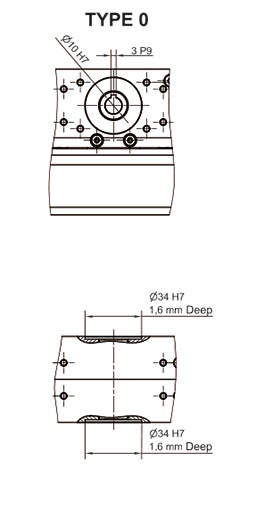

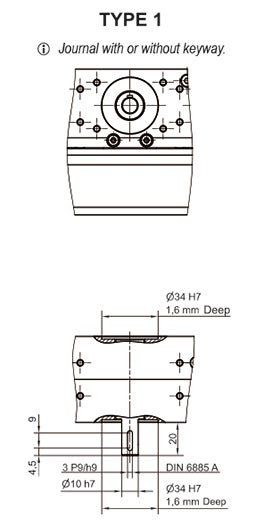

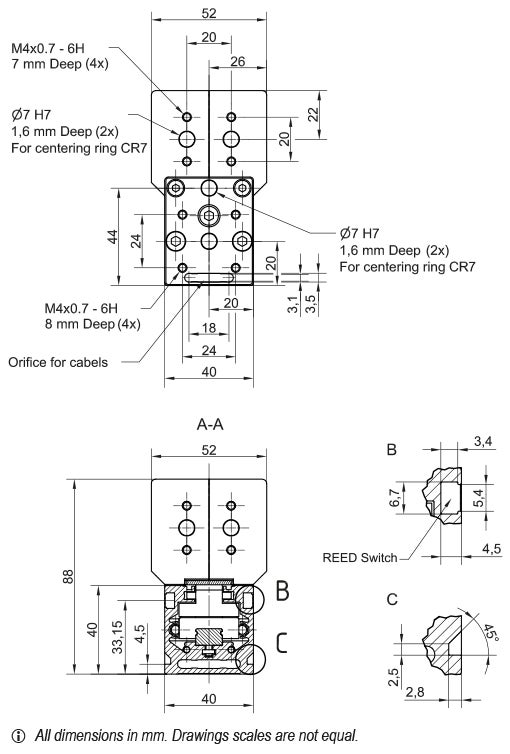

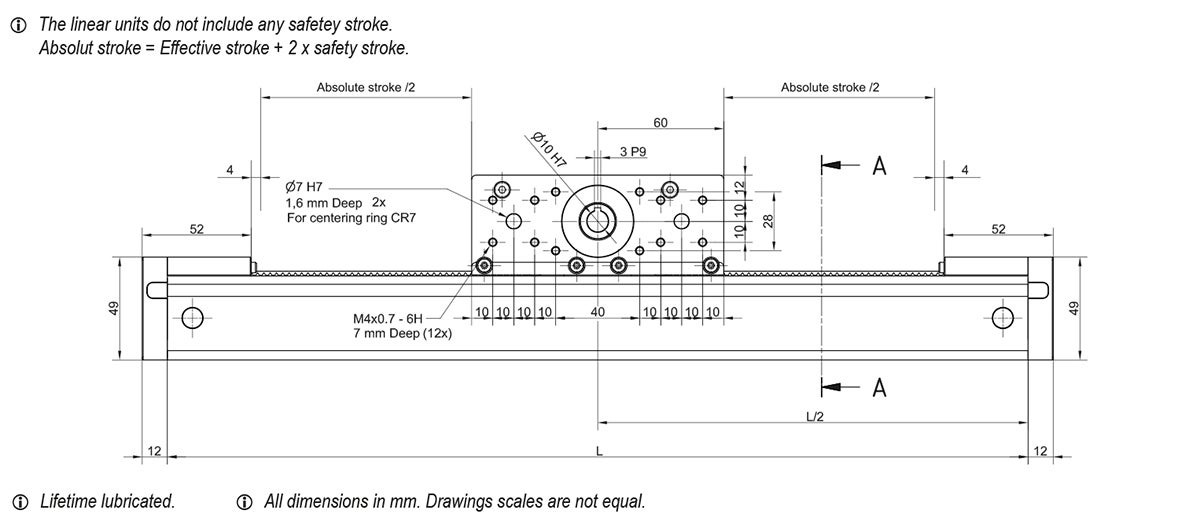

For linear units with drive journal w/o keyway to mount MSD belt drive
Designation | Select all | Compare | Get quote | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Dynamic Moment Mx (Nm) | Dynamic Moment My (Nm) | Dynamic Moment Mz (Nm) | Mass of Drive Block (kg) | Max. Permissible Loads Forces Fpy (N) | Max. Permissible Loads Forces Fpz (N) | Max. Permissible Loads Moments Mpx (Nm) | Max. Permissible Loads Moments Mpy (Nm) | Max. Permissible Loads Moments Mpz (Nm) | Max. Repeatability (mm) | Max. Length Version 1 Lmax (mm) | Max. Length Version 2 Lmax (mm) | Max. Stroke Version 1 (mm) | Max. Stroke Version 2 (mm) | Min. Stroke (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 4610 | 6930 | 28 | 120 | 120 | 0.95 | 2320 | 1510 | 14 | 40 | 62 | ± 0.08 | 1000 | 3000 | 792 | 2792 | 25 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
Designation | Select all | Compare | Get quote | Max. Drive Torque (Nm) | Pulley Drive Ratio (mm/rev) | Pulley Diameter | Planar Moment of Inertia ly (cm⁴) | Planar Moment of Inertia lz (cm⁴) | Belt Type | Belt Width | Max. Force Transmitted by Belt (N) | Specific Spring Constant Cspec (N) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|

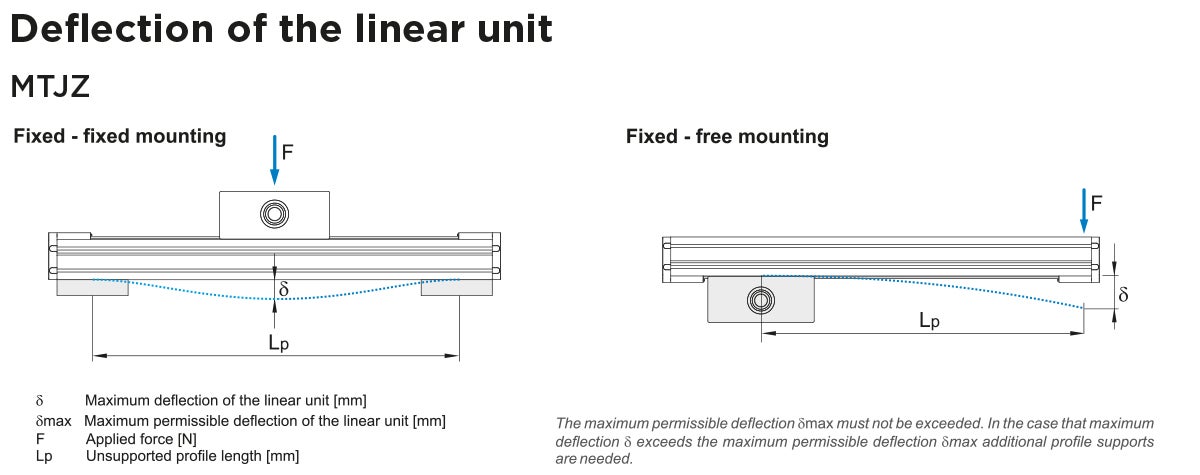

3.6 | 99 | 31.51 | 9.8 | 11.6 | AT3 | 20 | 230 | 225000 |
Designation | Select all | Compare | Get quote | Mass of Linear Unit (kg) | Mass Moment of Inertia Version 1 (10⁻⁴ kg m²) | Mass Moment of Inertia of Drive Block Version 2 (10⁻⁴ kg m²) | Planar Moment of Inertia ly (cm⁴) | Planar Moment of Inertia lz (cm⁴) |
---|---|---|---|---|---|---|---|---|
|
|

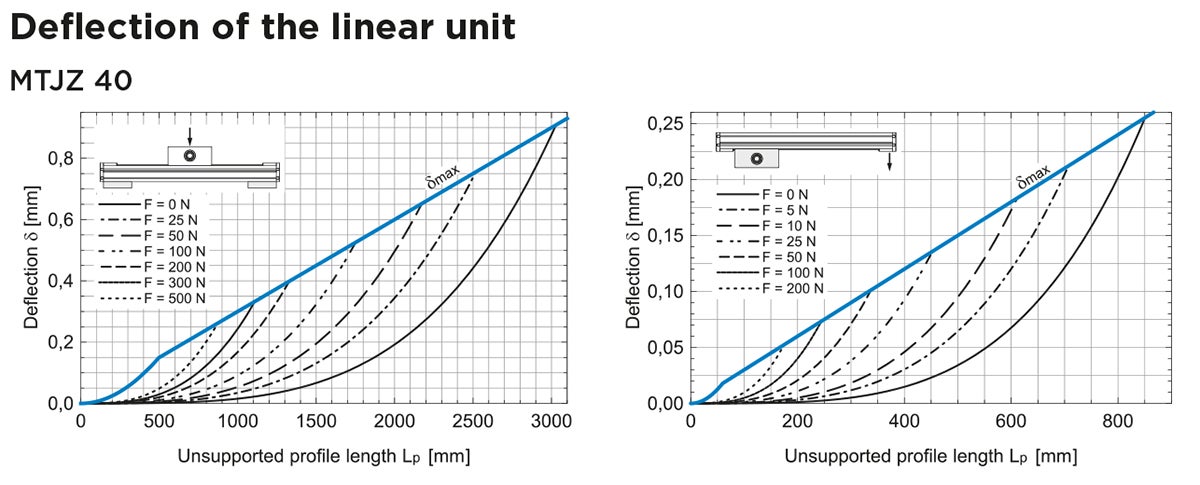

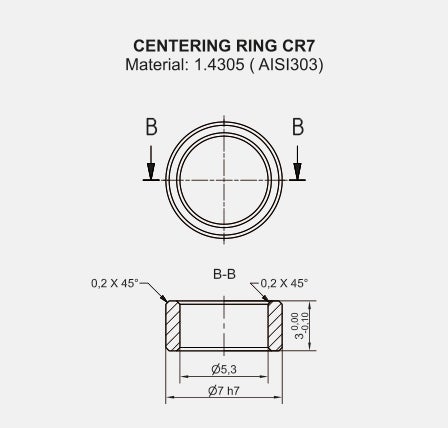

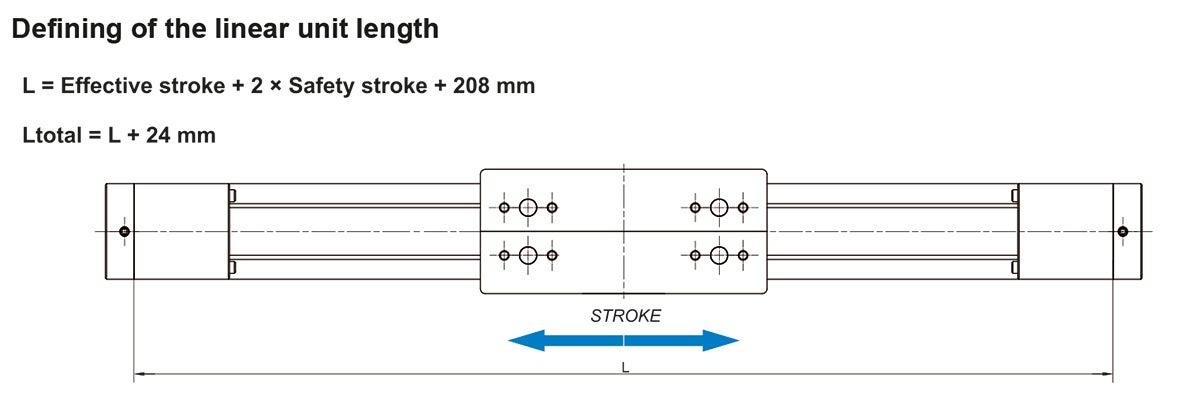

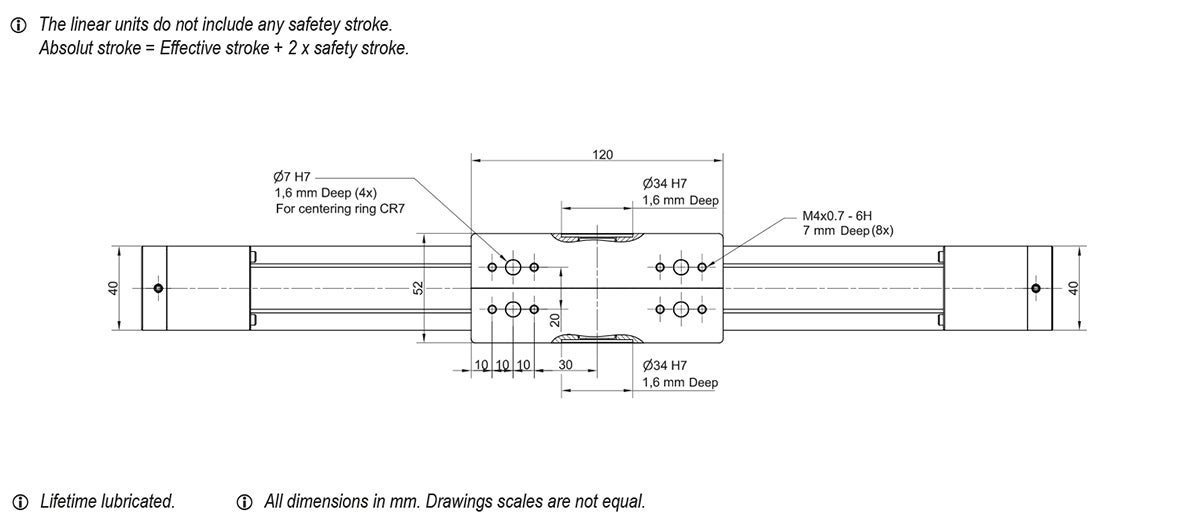

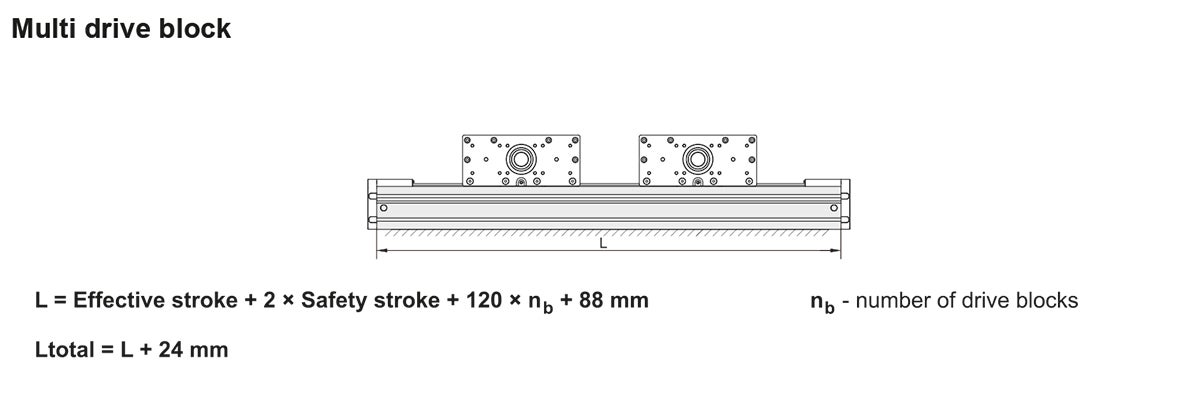

1.7 + 0.0023 × (Abs. Stroke + (nb - 1) × A) + 0.95 × (nb - 1) | 2.1 + 0.0058 × (Abs. Stroke × (nb - 1) × A) + 0.22 × (nb - 1) | 2.6 | 9.8 | 11.6 |
