Synchronisation Shaft OSR

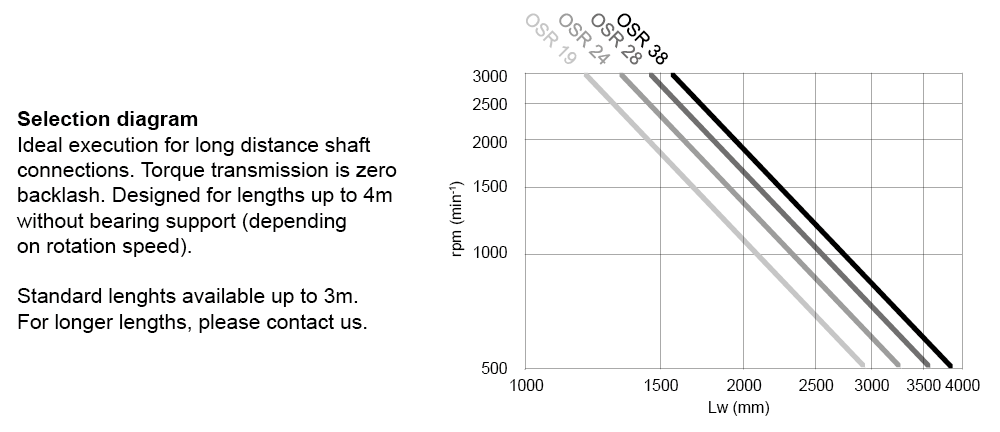

For longer distances bearing supports needed, please contact Rollco.

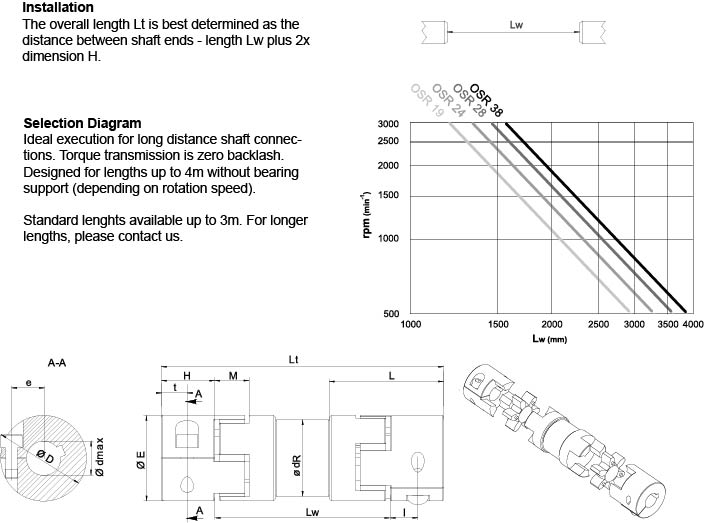

Installation:
The overall length Lt is best determined as the distance between shaft ends - length Lw plus 2x dimension H.
For CAD-files contact Rollco.
Dimensions in mm.
Explanations to the table below:
Ms = Screw tightening torque (Nm)
MT = Maximum transmissible torque (Nm)
CT = Torsional rigidity per meter (Nm/rad)
Read more
Installation:
The overall length Lt is best determined as the distance between shaft ends - length Lw plus 2x dimension H.
For CAD-files contact Rollco.
Dimensions in mm.
Explanations to the table below:
Ms = Screw tightening torque (Nm)
MT = Maximum transmissible torque (Nm)
CT = Torsional rigidity per meter (Nm/rad)
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | CT (Nm/rad) | D | E | e | H | I | L | M | t | Weight (kg) | Ms (Nm) | MT (Nm) | ød min. | ød max. | Lw min. | Lt | dR | Moment of inertia (10⁻⁶kg*m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 1630 | 47 | 40 | 15 | 25 | 13 | 53.5 | 16 | 12 | 0.30 + 0.00058 × Lw | 10 | 39 | 10 | 20 | 82 | On request | 36 | 66.0 + 0.1679 × Lw | ||
|
|
|
2 | 3980 | 57 | 55 | 20.8 | 30 | 16 | 63 | 18 | 14 | 0.62 + 0.00091 × Lw | 10 | 53 | 10 | 28 | 96 | On request | 45 | 242 + 0.4099 × Lw | ||
|
|
|
2 | 7494 | 73 | 65 | 25 | 35 | 20 | 67 | 20 | 15 | 0.98 + 0.00112 × Lw | 25 | 137 | 14 | 35 | 110 | On request | 55 | 572 + 0.7717 × Lw | ||
|
|
|
2 | 14540 | 84 | 80 | 30 | 45 | 25 | 83.5 | 24 | 20 | 1.75 + 0.00140 × Lw | 25 | 180 | 15 | 45 | 138 | On request | 68 | 1522 + 1.4975 × Lw |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
