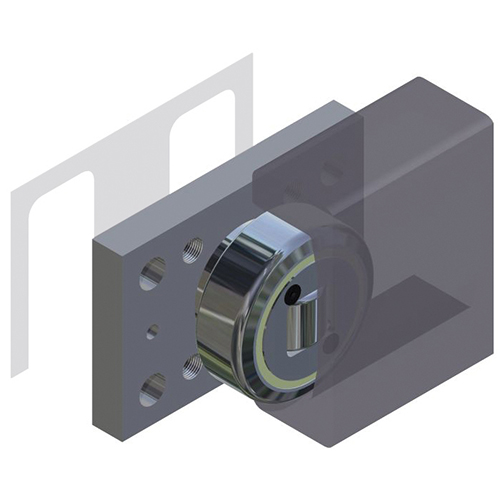

BR---.1100

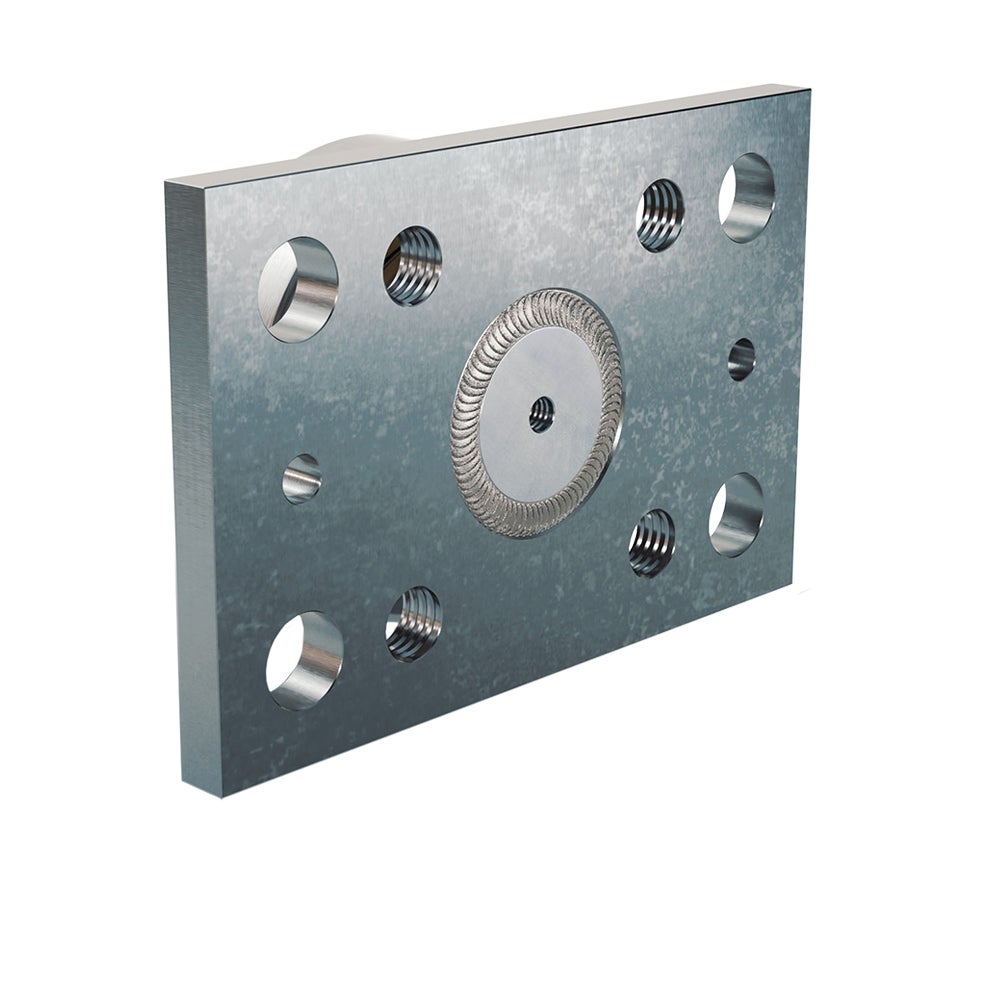

• The fixing element is welded with the respective combined roller
• Special dimensions on request.

* For L measurement, see respective roller.

Order example: Roller + fixing element TR070.0200/BR 1100
Roller, combined, fixed, Ø 70,1 mm - welded with mounting plate 120 x 80 x 15 mm

Dimensions in mm.
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all Compare Get quote Lead Time * Remark G A B D F C T E

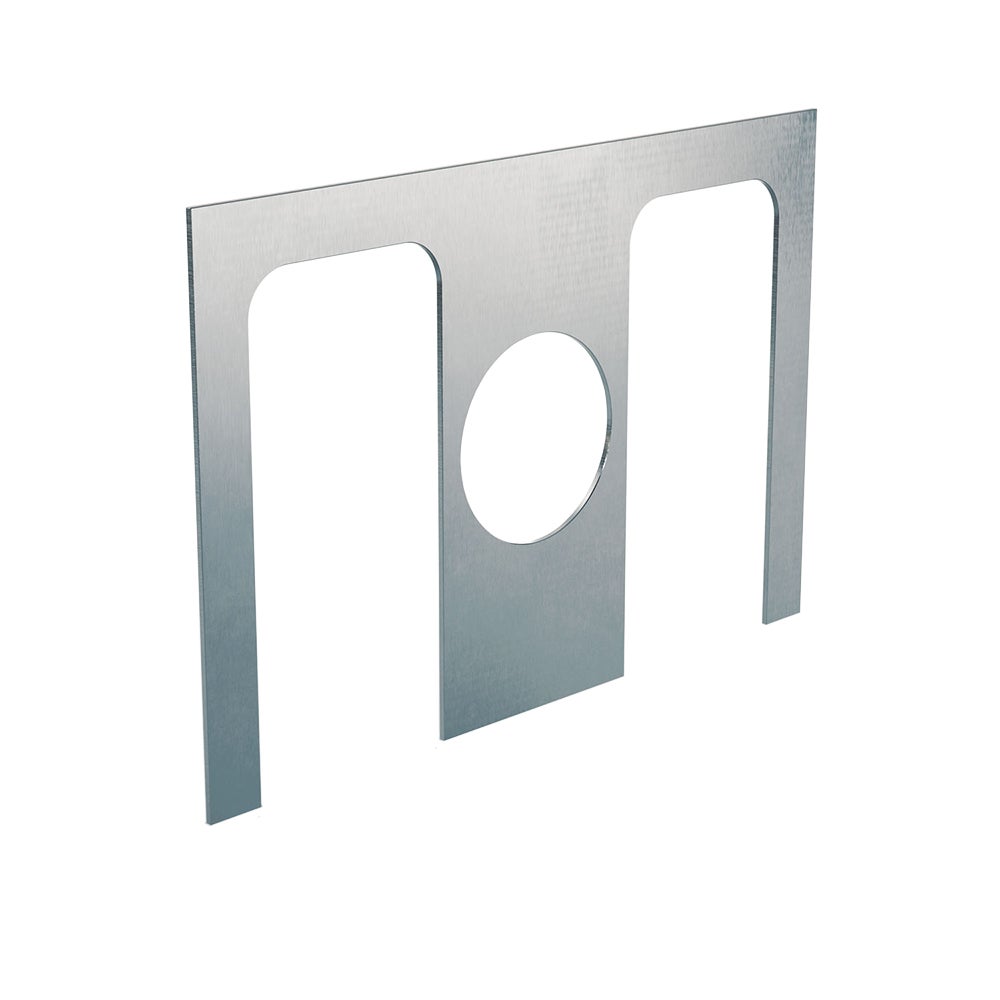

Get quote 2 Roller: TR050.---, Plate: BR1100, Distance sheet: BR050.1505, BR050.1510 10.5 100 60 80 M10 40 10 40
Get quote 2 Roller: TR060.--- / XTR060.---, Plate: BR1100, Distance sheet: BR060.1505, BR060.1510 10.5 100 60 80 M10 40 10 40
Get quote 2 Roller: TR070.--- / XTR070.---, Plate: BR1100, Distance sheet: BR070.1505, BR070.1510 13 120 80 90 M12 50 15 50
Get quote 2 Roller: TR080.--- / XTR080.---, Plate: BR1100, Distance sheet: BR080.1505, BR080.1510 13 120 80 90 M12 50 15 50
Get quote 2 Roller: TR090.--- / XTR090.---, Plate: BR1100, Distance sheet: BR090.1505, BR090.1510 17 160 100 120 M16 60 20 60
Get quote 2 Roller: TR110.--- / XTR110.---, Plate: BR1100, Distance sheet: BR110.1505, BR110.1510 17 180 120 140 M16 80 20 80
Get quote 2 Roller: TR120.--- / XTR120.---, Plate: BR1100, Distance sheet: BR120.1505, BR120.1510 17 180 120 140 M16 80 20 80
Get quote 2 Roller: TR150.--- / XTR150.---, Plate: BR1100, Distance sheet: BR150.1505, BR150.1510 17 200 150 160 M16 100 20 100

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
