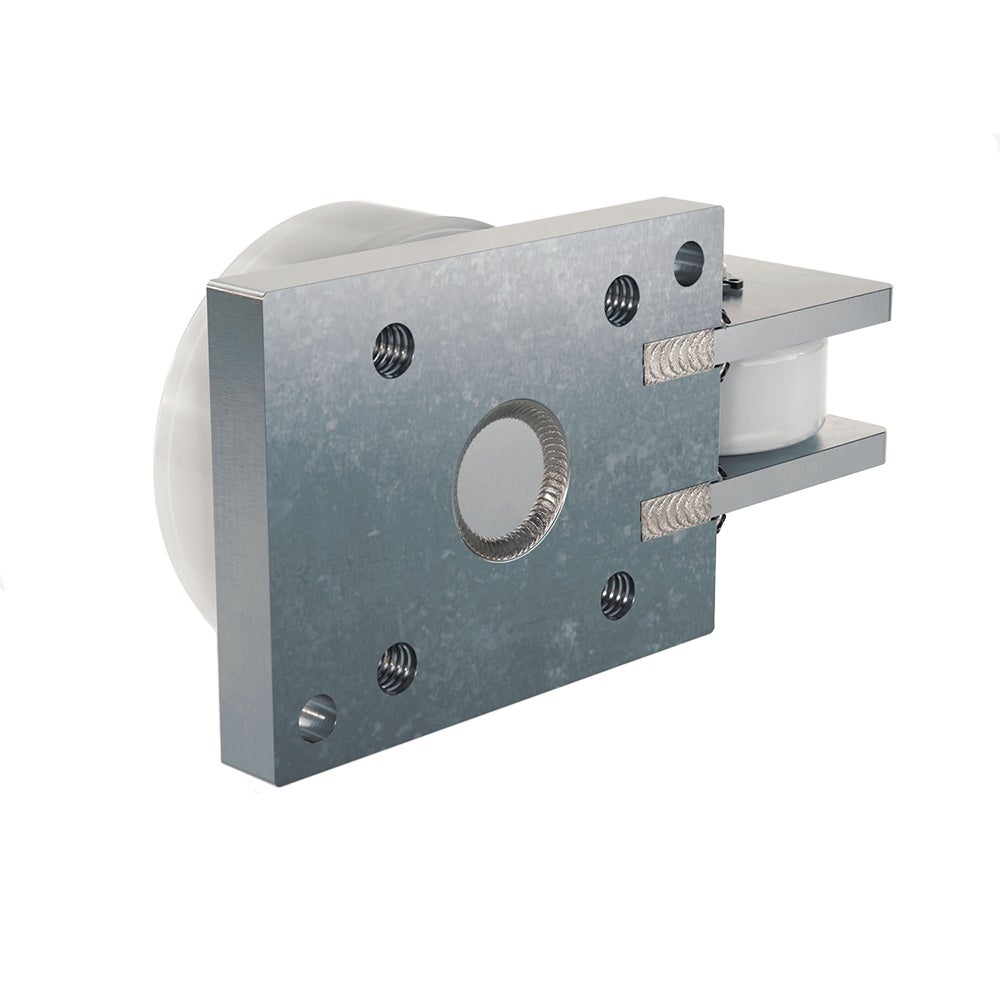

PSAS ---.6200

• Polyamide roller combined – fixed axial roller with higher load capacity
• Lubricated for lifetime
• High abrasion resistance
• Low friction
• High chemical resistance to alcohol, salts, greases and certain acids and alkalis in diluted concentration.

Reduction of value by speed of:
1 m/sec: 0%
2 m/sec: -20%
3 m/sec: -30%
Use profile UP---.0730

Order example: Roller + fixing plate PAS040.0360/BQ1000
Roller Ø 40 mm - welded with mounting element 50 mm x 50 mm x 8 mm

Dimensions in mm.
Read more

Product Information

Temperature: Maximum working temperature 80° C
Speed: Travel speed up to 5 m/sec
Roller Type: Polyamide
Sizes Available: 60; 100; 125; 145; 160; 180
Designation Select all Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Profile
Get quote 2 1500 900 UP---.0730
Get quote 2 2500 1800 UP---.0730
Get quote 2 6000 2500 UP---.0730
Get quote 2 8000 5000 UP---.0730
Get quote 2 10000 5000 UP---.0730
Get quote 2 15000 6500 UP---.0730

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote A B C D E F G H J K L M N O P Q R S T U
Get quote 48 42 63 75 6 33 40 66 46 40 60 4 x M8 7 2 x Ø6 62.5 10 120 80 40
Get quote 57 51 102 114 6 40 80 105 80 80 100 4 x M10 7.5 2 x Ø6 101.2 10 160 120 40
Get quote 71 63 126 142 8 56 80 140 80 100 4 x M10 4 x Ø11 2 x Ø6 125 12 223 160 60
Get quote 96 88 146 162 8 65 130 90 120 4 x M16 145 20 263 180 80
Get quote 96 88 159 175 8 73 140 90 120 4 x M16 158 20 273 190 80
Get quote 98 88 180 200 10 70 160 90 120 4 x M16 179 20 295 210 80
  • STOCK ITEM
