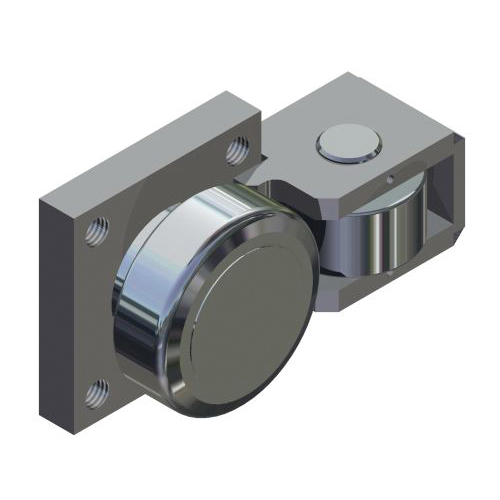

STR---.4200

Plate, yoke and outside of roller made entirely in stainless steel 1.4301.
Stainless, sealed and lubricated for life rolling bearings inside the rollers.

Use profile UP---.0780

Dimensions in mm.
Read more

Product Information

Roller Type: Stainless
Sizes Available: 50; 70; 80
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Profile
Get quote 2 3500 2000 UP---.0780
Get quote 2 6000 3000 UP---.0780
Get quote 2 7200 3000 UP---.0780

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B C D E F G H I J K M N O P R S
Get quote 33 12 72 40 10 30 50 37.9 15 21 62 113 43 Ø 40 4 x M8 Ø 52.5 23
Get quote 37 15 105 60 15 60 80 48.5 15 32 90 162 55 Ø 52 4 x M12 Ø 70.1 29
Get quote 37 15 105 60 15 60 80 48.5 15 32 90 162 55 Ø 52 4 x M12 Ø 77.7 29

  • PAS ---.0360
    Roller combined fixed with oilamide sliding block for profile UP---.0730

  • PAS ---.0200
    Polyamide roller combined fixed, for profile UP---.0730

  • PSAS ---.6200
    Polyamide roller combined fixed axial, for profile UP---.0730

  • TR---.0200
    Standard Roller Fixed, for profile UP---.0700/0730

  • TR---.0300
    Standard Roller, adj. of the axial clearance, for profile UP---.0700

  • TR---.0360
    Standard Roller with Oilamide Sliding Block, for profile UP---.0700

  • XTR---.0200
    Heavy Roller Fixed, up to 60% higher load capacity, for profile XUP---.0700

  • STR---.6200
    Standard Roller with axial bearing, for profile UP---.0700

  • XTR---.0300
    Heavy Roller combined adjustable w. insert washer, for profile XUP---.0700

  • TR---.0390
    Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780

  • XSTR---.6200
    Heavy Roller axis, extra sustainable, for profile XUP---.0700
