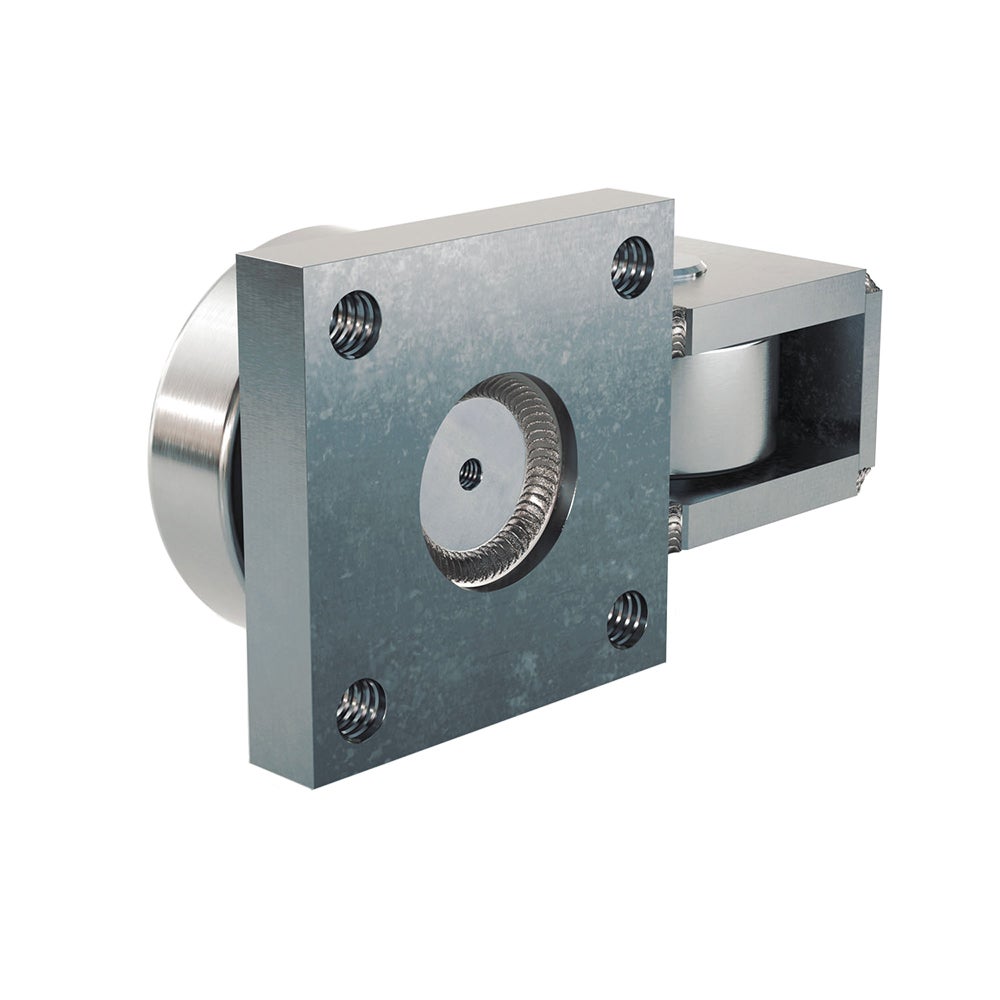

STR---.6200
• This roller with axial bearing gives 40% higher load capacity
• Lubricated for lifetime
• Special dimensions on request
Use profile UP---.0700
Order example: STR 080.6200
Standard roller STR 080.6200
Dimensions in mm.
Read more
• Lubricated for lifetime
• Special dimensions on request
Use profile UP---.0700
Order example: STR 080.6200
Standard roller STR 080.6200
Dimensions in mm.
Product Information
Roller Type: Standard
Sizes Available: 60; 70; 80; 90; 110; 120; 150
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | System Load Capacity Radial (N) | System Load Capacity Axial (N) | Profile |
|---|---|---|---|---|---|---|---|
|
|
|
2 | 8870 | 7000 | UP---.0700 | ||
|
|
|
2 | 11400 | 11000 | UP---.0700 | ||
|
|
|
2 | 12870 | 11000 | UP---.0700 | ||
|
|
|
2 | 20370 | 13000 | UP---.0700 | ||
|
|
|
2 | 24060 | 20000 | UP---.0700 | ||
|
|
|
2 | 33440 | 20000 | UP---.0700 | ||
|
|
|
2 | 51940 | 20000 | UP---.0700 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | Compare | Get quote | A | B | C | D | E | F | G | H | I | J | K | M | N | O | P | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
38 | 20 | 70 | 50 | 10 | 50 | 70 | 41.5 | 12 | 35 | 55 | 118 | 42.5 | Ø 40 | 4 x M10 | Ø 62.5 | ||
|
|
|
42 | 24 | 80 | 60 | 10 | 60 | 80 | 49 | 15 | 40 | 65 | 137 | 51 | Ø 47 | 4 x M12 | Ø 70.1 | ||
|
|
|
46 | 24 | 100 | 70 | 15 | 70 | 100 | 48.5 | 15 | 50 | 75 | 157 | 51.5 | Ø 47 | 4 x M12 | Ø 77.7 | ||
|
|
|
46 | 24 | 120 | 90 | 15 | 90 | 120 | 61 | 20 | 60 | 85 | 183 | 64 | Ø 52 | 4 x M16 | Ø 88.4 | ||
|
|
|
54 | 28 | 140 | 100 | 20 | 100 | 140 | 71.5 | 20 | 70 | 105 | 223 | 75 | Ø 72 | 4 x M16 | Ø 107.1 | ||
|
|
|
58 | 28 | 140 | 100 | 20 | 100 | 140 | 71.5 | 20 | 70 | 107 | 225 | 76 | Ø 72 | 4 x M16 | Ø 123 | ||
|
|
|
54 | 28 | 160 | 120 | 20 | 120 | 160 | 79 | 25 | 80 | 120 | 248 | 83.5 | Ø 72 | 4 x M16 | Ø 149 |
-
-
